 RealOEM.com Home => Select another car => Manual Transmission => Individual transmission parts

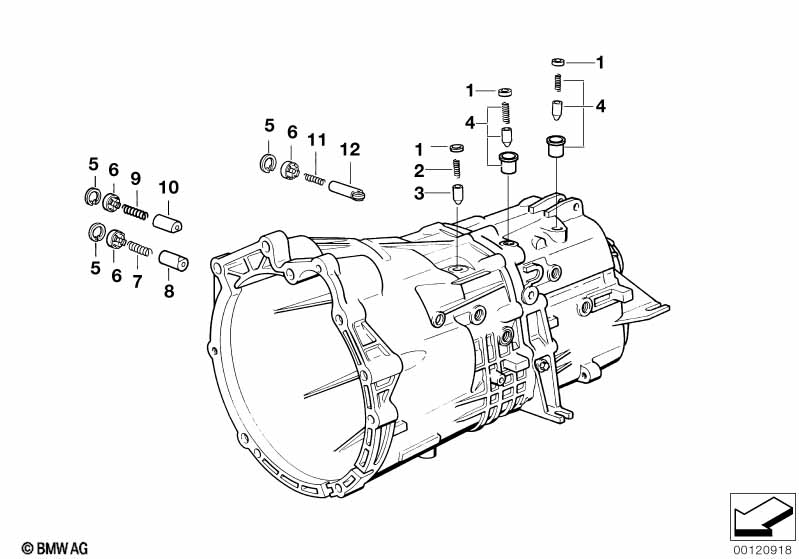

Parts diagram
Sponsored links
No.DescriptionSupplementQty From  Up To Part NumberPriceNotes Photo
  iTransmission parts for complete-repair
only
on request. For this repair, there is no
repair-instruction or special-tool. The
repair should only be made by qualified
personal, at best by BMW partner
organization. BMW does not assume
liability and damages caused through
improper repair.
01Cover lid323317531369ENDED
01Cover lid323317637524
02Compression spring123311224959$1.65
03Locking pin123311224791$5.48
04Set of detent pins223117525048$11.79See SI 230102(881)
05Lock Ring20X1323317531374$1.43
06Cover lid323311224825$5.42
07Compression spring123311224935$2.40
08Locking pin123317502165$9.91
09Compression spring123311224817$2.92
10Locking pin123317502165$9.91
11Compression spring123311224819$2.23
12Locking pin123311224823$27.61

Ads by RealOEM
Eres un experto usando catálogos de partes para BMW? Queremos ofrecerle una carrera con prospección como representante de servicio al cliente trabajando desde casa. Si usted esta interesado, pulsar acá y envié su currículo

Notes

  • SI, TÜV, SDB = Service Information (refer to TIS).
  • ENDED = The part has been discontinued.
