E46 323i     Fuel pipe and mounting parts

Language:
Sponsored links
 RealOEM.com Home => Select another car => Fuel Supply => Fuel feed

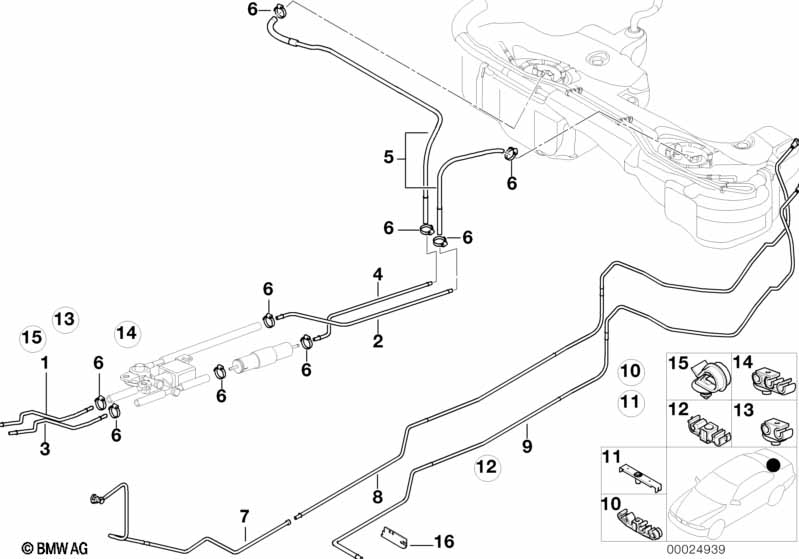

Parts diagram
Sponsored links
No.DescriptionSupplementQty From  Up To Part NumberPriceNotes Photo
  i3/2-way control valve and fuel filter
see main section 13
01FRONT FUEL RETURN LINE116121183884$3.88
02REAR FUEL RETURN LINE116121183881$7.10
03FRONT FUEL FEED LINE116121183878$1.85
04REAR FUEL FEED LINE116121183759$11.07
05FUEL PIPES SET116117175998$30.47
06Hose clampL12-15?07129952104$1.18
07VACUUM PIPE116137175990
08VACUUM PIPE116131183901$21.95
09Scavenge air line116111184135$20.23
10Pipe clip216121183772$1.43
11Bracket216127195327$2.12
12BRAKE PIPE BRACKET134301164005$0.68
13Pipe clip216121179396$1.08
14Tubing support116121183468$2.00
15Cable clamp161138368029$0.43
16sealing116131184380$2.55

Ads by RealOEM
Eres un experto usando catálogos de partes para BMW? Queremos ofrecerle una carrera con prospección como representante de servicio al cliente trabajando desde casa. Si usted esta interesado, pulsar acá y envié su currículo

Notes

  • Items pictured but not listed are not installed on your vehicle.
  • Items pictured without a number are listed on another diagram.
