3' E46 318i OIL PAN/OIL LEVEL INDICATOR

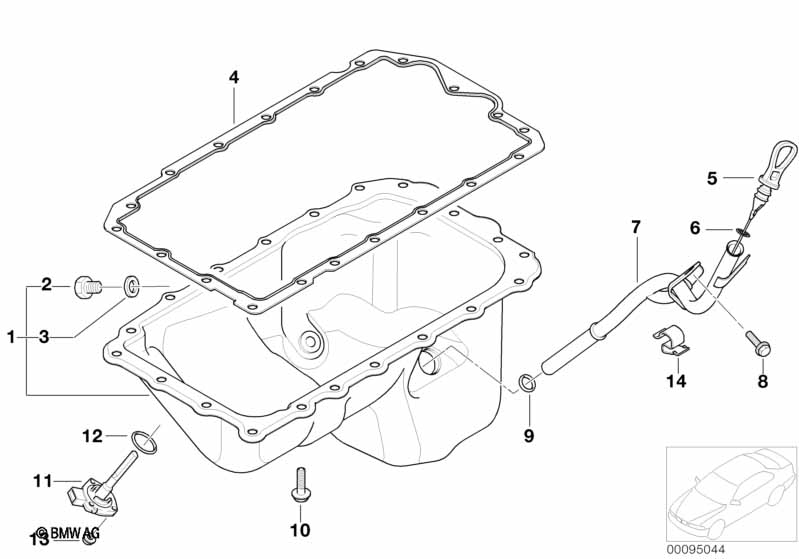

OIL PAN/OIL LEVEL INDICATOR
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Oil Pan 1 11137568565
02 Screw plug M12X1,5 1 11131742994 $3.68
02 Screw plug M12X1,5 1 11137568309
03 Gasket ring A12X17-CU 1 07119963151 $0.57
04 PROFILE-GASKET 1 11137511224 $35.58
Required for repair
-- SELF-LOCKING HEX BOLT M8X28,5 20 11137551825
05 Dipstick 1 11437505490 $15.30
06 O-ring 9X2,2 2 11431717666 $0.73
07 Guide tube 1 11437505011 $40.73
08 Hex bolt with washer M8X16-Z1 2 07119900268 $0.53
09 O-ring 14,5X3,0 1 11437529257 $1.19
10 SELF-LOCKING HEX BOLT M8X28,5 20 11137551825
11 OIL LEVELLING SENSOR 1 12617501786 $163.50 +core
12 Gasket ring 1 12611744292 $6.42
13 Hex nut M6-8-ZNNIV SI 3 07119905544 $0.64
14 Cable clamp 1 11787549563 $1.04
Notes
  • +core = plus core charge (possibility of a return of the old part)
