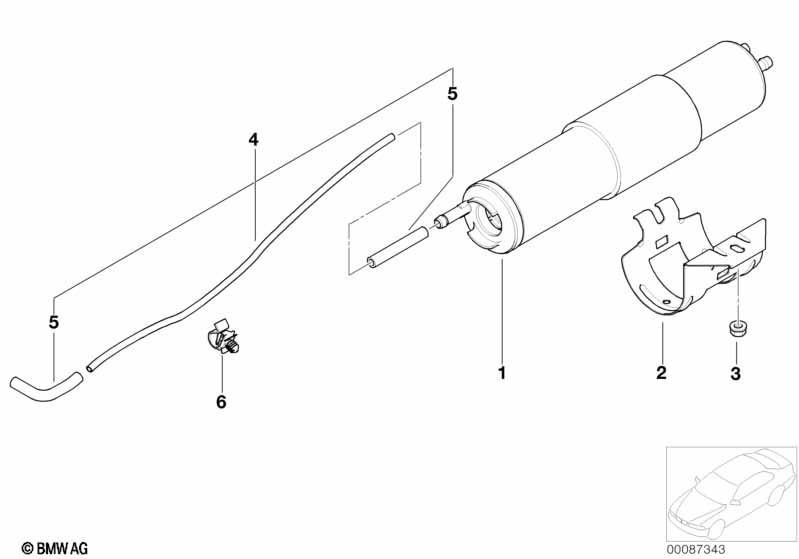

| No. | Description | Supplement | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| i | for continuation of fuel pipe see HG 16 | ||||||||
| 01 | Fuel filter with pressure regulator | D=55MM/L=315MM | 1 | 13327512019 | $96.84 | ||||
| 02 | BRACKET FUEL STRAINER | D=55MM | 1 | 13321435583 | $16.33 | ||||
| 03 | Hex nut with plate | AM6-ZNS | 1 | 07129900681 | ENDED | ||||
| 03 | Hex nut with plate | AM6-8-ZNNIV SI | 1 | 07129904553 | $0.64 | ||||
| 04 | VACUUM PIPE | 1 | 13327561060 | $7.78 | |||||
| 05 | VACUUM HOSE BLACK | 3,5X1,8 | ? | 11727545323 | $14.82 | ||||
| 06 | Cable clamp | 2 | 61138368029 | $0.43 | |||||
Notes
- ENDED = The part has been discontinued.
