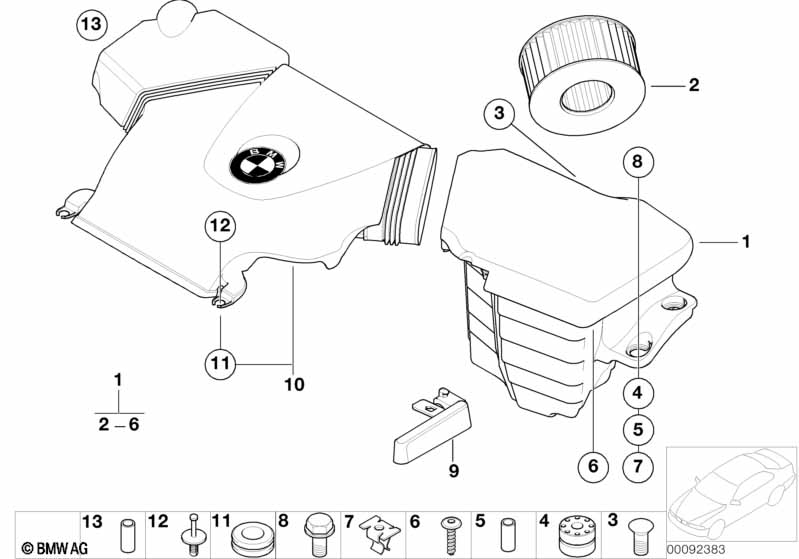

| No. | Description | Supplement | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Intake muffler | 1 | 13717508710 | $278.31 | |||||
| For vehicles with Hot-climate version | S823A=Yes | ||||||||
| 01 | Intake muffler | 1 | 13717509543 | ||||||
| 02 | Air filter element | 1 | 13717503141 | $24.30 | |||||
| For vehicles with Hot-climate version | S823A=Yes | ||||||||
| 02 | Air filter element | 1 | 13717509544 | $24.30 | |||||
| 03 | Screw | 2 | 13717509678 | ||||||
| 04 | Rubber grommet | 2 | 13711742771 | $4.36 | |||||
| 05 | Spacer sleeve | 2 | 13717522371 | ||||||
| 06 | Screw, thermoplastic plastics | NS-TS5X20-ZNS3 | 7 | 07129904960 | $1.53 | +core | |||
| 07 | PRESTOL-CAGE | 2 | 32411095443 | $1.48 | |||||
| 08 | Hex bolt with washer | M6X35-Z2 | 2 | 07119900686 | $0.96 | ||||
| 09 | Hose clamp | 1 | 13717502564 | $11.46 | |||||
| 10 | INTAKE MANIFOLD | 1 | 13717508711 | $79.63 | |||||
| 11 | Rubber grommet | 2 | 31421236240 | $1.93 | |||||
| 12 | EXPANDING RIVET | 2 | 51471919209 | $0.45 | |||||
| 13 | Rubber grommet | 1 | 11127501588 | $1.07 | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
