3' E46 318i Fuel pipe and mounting parts

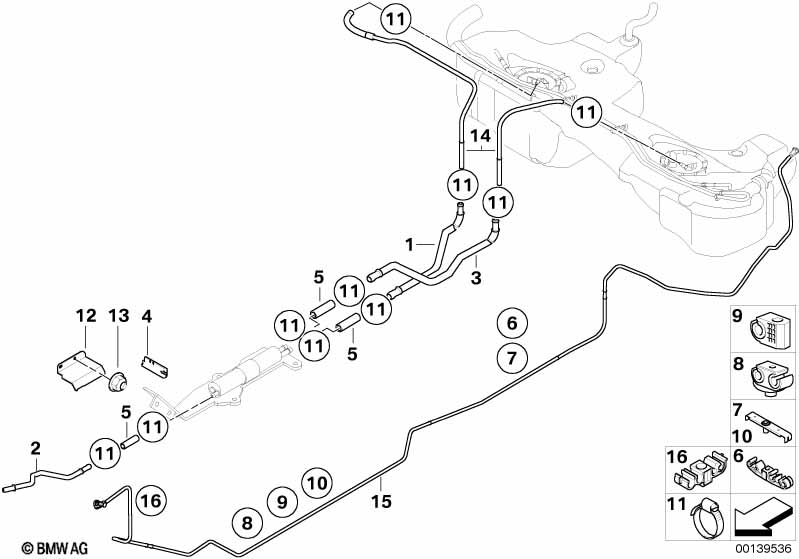

Fuel pipe and mounting parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 REAR FUEL FEED LINE 1 16126752180 $11.07
02 Fuel pipe 1 06/2002 13317500922 $69.19 +core
02 Fuel pipe 1 06/2002 13537548991 +core
03 FUEL RETURN LINE 1 16126752186 $11.07
05 Fuel hose 8X13MMX1000 X 13537563456 $44.77
06 Pipe clip 2 07/2002 16126753244 $2.00
06 Pipe clip 2 16126761229 $1.65
07 Bracket 2 16127195327 $2.12
08 Pipe clip 2 16121179396 $1.08
09 Pipe clip 9 16136753249 $0.93
10 Bracket 9 34306773697 $0.62
11 Hose clamp L12-15 9 07129952104 $1.18
12 Protection plate 1 16121183775
13 Plastic capnut with washer D=18MM 2 51161943122 $0.39
14 FUEL PIPES SET 1 16117175998 $30.47
15 Scavenging line front 1 16136753247 $50.70
Notes
  • +core = plus core charge (possibility of a return of the old part)
