E46 325i     Activated Charcoal Filter/FUEL VENTILAT

Language:
Sponsored links
 RealOEM.com Home => Select another car => Fuel Supply => VENTILATION

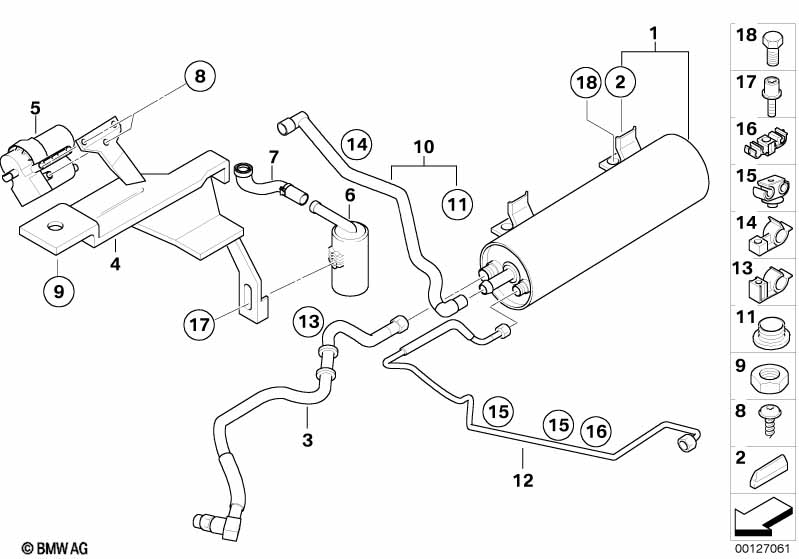

Parts diagram
Sponsored links
No.DescriptionSupplementQty From  Up To Part NumberPriceNotes Photo
01Activated Charcoal Filter, metal116126757177$477.57+core
02Cap216131183918$3.32
03Vent pipeD=18MM116116757514$285.26
04Bracket116116757507$53.12
05Leak diagnosis pump116137193479$112.36
06Dust filter116136757522$31.92
07Vent pipe, dust filter116116757508$40.50
08screw for plasticTS5X12-ZNS3307147194471$0.34
09Plastic nut110/200351711958025$0.26
09Hex nut with plate106/200407146981606
09SELF-LOCKING HEX NUTM6164509123157$0.70
10Vent pipe116126757179$25.35
11Sealing grommet216131183912$2.08
12Scavenging line rear116136757559$192.00
13ClipD=15MM116136759907$1.62
14Cable clipD18116131183931$1.08
15Pipe clip216121179396$1.08
16BRAKE PIPE BRACKET134301164005$0.68
17Internal Torx screw with washerTS5X12116137224837
18Hex bolt with washerM6X23207119905591$0.29

Ads by RealOEM
Eres un experto usando catálogos de partes para BMW? Queremos ofrecerle una carrera con prospección como representante de servicio al cliente trabajando desde casa. Si usted esta interesado, pulsar acá y envié su currículo

Notes

  • +core = plus core charge (possibility of a return of the old part)
