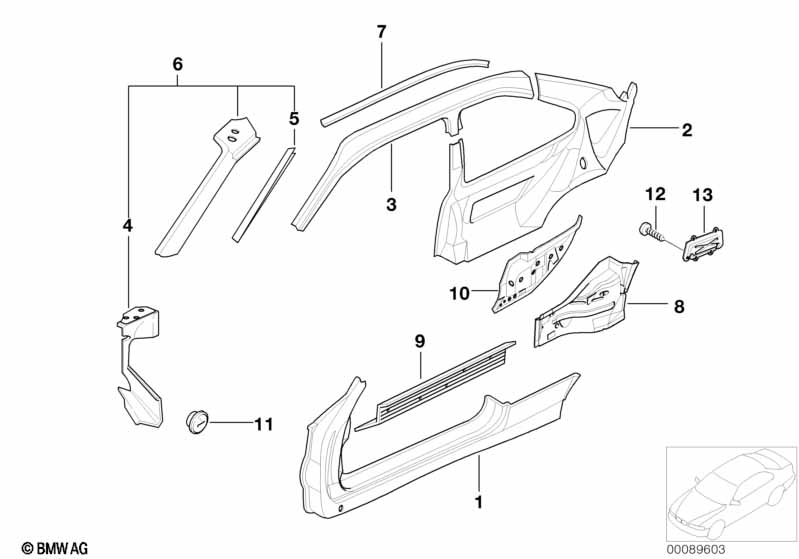

3' E36 318is Single components for body-side frame

Single components for body-side frame
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Column a with left rocker panel 1 41008209929 $553.32
01 Column B with right rocker panel 1 41008209930 $553.32
02 Left inner lateral trim panel 1 41008151925 $532.62
02 Right inner lateral trim panel 1 41008151926 $532.62
03 Roof frame left 1 41008151923 $497.27
03 Right roof frame 1 41008151924 $497.27 ENDED
04 Connect.plate f.left side panel frame 1 41218151929 $147.63 ENDED
04 Connect.plate f.right side panel frame 1 41218151930 $147.63
05 Connection angle for left cowl panel 1 41228151457 $15.51 ENDED
05 Connection angle for right cowl panel 1 41228151458 $15.51 ENDED
06 Left apron 1 41328119113 $253.32
06 Right apron 1 41328119114 $253.32
07 Support left 1 41328151459 $12.60 ENDED
07 Support right 1 41328151460 $10.03
08 Rear left side member 1 41118132991 $120.63
08 Right rear side member 1 41118132992 $120.63
09 Left side member 1 41128153759 $150.80
09 Right side member 1 41128153760 $150.80
10 Lateral trim panel left 1 41218173729 $64.95
10 Lateral trim panel right 1 41218173730 $64.95
11 Lock HELLGRAU 4 51718151431 $0.85
11 Lock DUNKELGRAU 4 51718151432 $6.18
12 Fillister head self-tapping screw ST4,8X19-Z1 8 07119906765 $0.56
13 Locking plug side frame 2 51718153941 $3.65
Notes
  • ENDED = the part has been discontinued (no longer available).
