E36 328i     Pusher fan and mounting parts

Language:
 RealOEM.com Home => Select another car => Heater and Air Conditioning => coolant lines, drying container

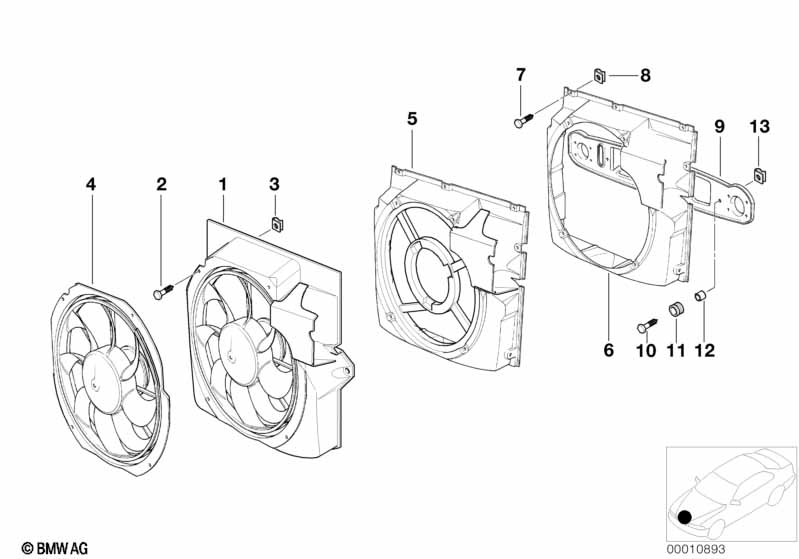

Parts diagram
No.DescriptionSupplementQty From  Up To Part NumberPriceNotes
01Pusher fan109/199264508364093$366.18
COMPRISES
COMPRESSION FRAME
02Hex head screwST4,8X19-C-Z2409/199207119916949$0.25
03Body nut409/199263171368008$0.53
05Compression shroud109/199564548370967$80.37
ONLY APPLIES TO SIEMENS
05Compression shroud109/199209/199564548370967$80.37
ONLY APPLIES TO THYSSEN
06Compression shroud109/199209/199564548391407$69.19
ONLY APPLIES TO SIEMENS
07Hex head screwST4,8X16-ZNS409/199207119901294ENDED
07Hex head screwST4,8X16-ZNS3409/199207119901299$0.25
08Body nutST4,8-3409/199207129901649ENDED
08Body nutST4,8-13-ZNS3409/199207129904223$0.11
09STRAIGHT FRONT CROSS MEMBER110/199341138132178$67.89
10Sheet metal screw6,3 X 26409/199264538373922$0.58
11Grommet209/199264538391408$0.81
12Bush209/199264538368101$1.56
13Body nutST6,3-2409/199207129925743$0.13
13Body nutST6,3-2-ZNS3409/199207129904232$0.16

Notes

  • ENDED = The part has been discontinued.
