 RealOEM.com Home => Select another car => Fuel Supply => VENTILATION

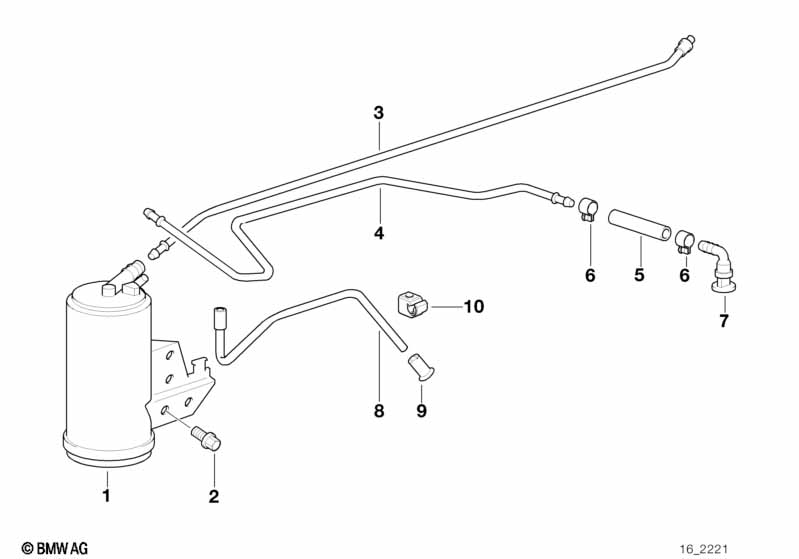

Parts diagram
Sponsored links
No.DescriptionSupplementQty From  Up To Part NumberPriceNotes Photo
01Activated Charcoal Filter106/199616132227209$87.89
02Hex bolt with washerM6X16-U1-ZNS3206/199607119903844ENDED
02Hex bolt with washerM6X16-U1-8.8206/199607119904524$0.25
03Vent pipe1106/199616132228052+core
04Vent pipe2106/199616132227316
05Fuel hose8X13MM?06/199616121180409$20.43
06Hose clamp12,8-15,3306/199616121180240$0.77
07END PIECEAKF106/199616131180906
08OUTLET PIPE F ACTIVATED CARBON CONTAINER106/199616132228104$12.02
09Rubber grommetD=40MM106/199616132227259$15.47
10Tubing support206/199634411154158$0.68

Ads by RealOEM
Eres un experto usando catálogos de partes para BMW? Queremos ofrecerle una carrera con prospección como representante de servicio al cliente trabajando desde casa. Si usted esta interesado, pulsar acá y envié su currículo

Notes

  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = The part has been discontinued.
