E46 318Ci     Engine Block Mounting Parts

Language:
Sponsored links
 RealOEM.com Home => Select another car => Engine => Engine housing

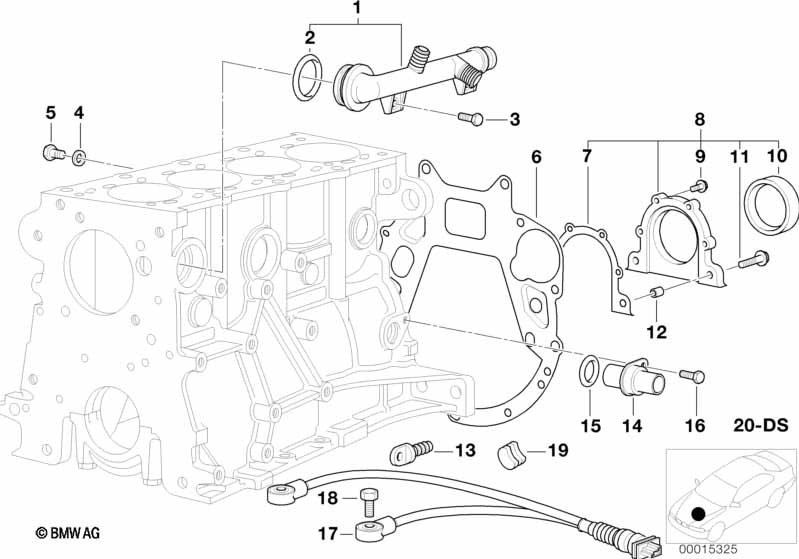

Parts diagram
Sponsored links
No.DescriptionSupplementQty From  Up To Part NumberPriceNotes Photo
01Connector111531709232$17.70
02O-ring32X5111531709157$2.04
03Hex bolt with washerM6X20107119904527$0.44
04Gasket ringA14X18-AL107119963200$0.38
05Screw plugM14X1,5-ZNNIV107119904539$2.56
For vehicles with
Automatic transmission = No

S205A=No
06Covering plate111141734019$11.15
For vehicles with
Automatic transmission

S205A=Yes
06Covering plate111142243305$11.15
07Gasket Steel111141432240$3.10
08Set of covers111141437774$94.60
09Hex bolt with washerM6X25-ZNNIV SI407119905400$0.65
10Shaft seal90X110X12111142249533$58.96
11Hex bolt with washerM8X32-Z1211141744147$0.85
12DowelD=10,5MM211121726238$1.62
13Blind plug111111714541$1.60
14Pulse generator, crankshaft112141709616$116.05
15O-ring17X3112141748398$1.20
16Fillister-head screwM6X16111421740488$0.98
17Ping Sensor113627568422$90.58
18Hex boltM8X28-ZN207119913659$0.47
For vehicles with
Automatic transmission

S205A=Yes
19Cover lid111141730453$3.22
20Gasket Set Engine Block Asbesto Free111111712981$134.07

Ads by RealOEM
Eres un experto usando catálogos de partes para BMW? Queremos ofrecerle una carrera con prospección como representante de servicio al cliente trabajando desde casa. Si usted esta interesado, pulsar acá y envié su currículo

Notes

  • Items pictured but not listed are not installed on your vehicle.
  • Items pictured without a number are listed on another diagram.
