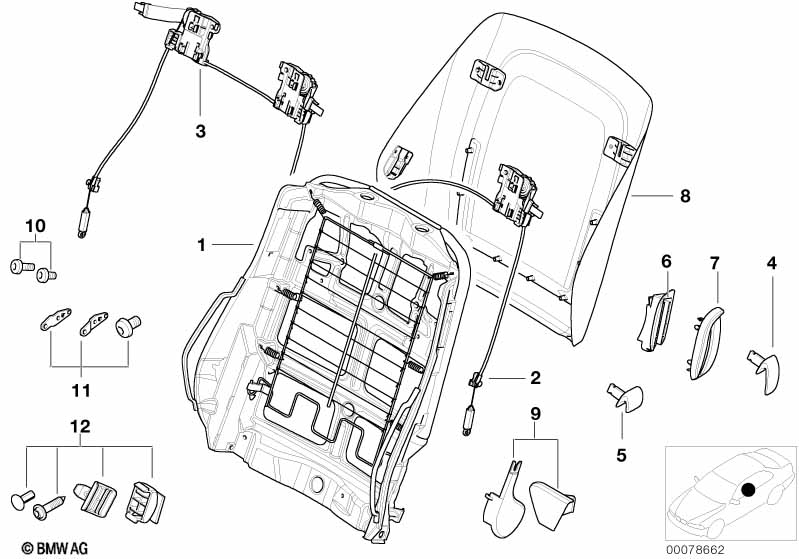

3' E46 M3 Front seat backrest frame/rear panel

Front seat backrest frame/rear panel
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Backrest frame 2 52108234341 $71.47
ONLY APPLIES TO DRIVER'S SIDE
02 Unlocking unit, left 1 52108099137 $80.32
ONLY APPLIES TO CO-DRIVERS SIDE
03 Unlocking unit 1 52108099134 $74.81
04 Lever outer left SCHWARZ 1 09/2001 52108099117 $5.89 ENDED
04 Lever outer right SCHWARZ 1 09/2001 52108099118 $6.70
04 Lever outer left SCHWARZ 1 09/2001 52107064869 $6.70
04 Lever outer right SCHWARZ 1 09/2001 52107064870 $6.70
ONLY APPLIES TO CO-DRIVERS SIDE
05 Lever inner left SCHWARZ 1 52108099119 $6.70
06 Frame left SCHWARZ 1 52108099129 $6.02
06 Frame right SCHWARZ 1 52108099130 $6.02
07 Covering left SCHWARZ 1 52108242835 $5.55
07 Covering right SCHWARZ 1 52108242836 $5.55
07 Covering left GRAU 1 52108242837 $5.55
07 Covering right GRAU 1 52108242838 $5.55
08 Rear panel with net bag SCHWARZ 2 52108235907 $109.95
08 Rear panel with net bag GRAU 2 52108235908 $109.95
For vehicles with
All leather Nappa

L7=Yes
08 Rear panel with net bag Q9L7SW SCHWARZ 2 52108267636 $268.95
09 Left set of covers SCHWARZ 2 52108260845 $6.48
09 Right set of covers SCHWARZ 2 52108260846 $6.48
09 Left set of covers GRAU 2 52108260847 $6.48
09 Right set of covers GRAU 2 52108260848 $6.48
10 set of fittings for seat insets 2 52108251432 $3.37
11 set of fittings for seat shell 2 52108240499 $5.48
12 set of fittings for backrest rear panel 2 52108240495 $16.54
Notes
  • ENDED = the part has been discontinued (no longer available).
