E46 330Ci     Vacuum control, exhaust flap

Language:
Sponsored links
 RealOEM.com Home => Select another car => Exhaust system => Exhaust system, rear

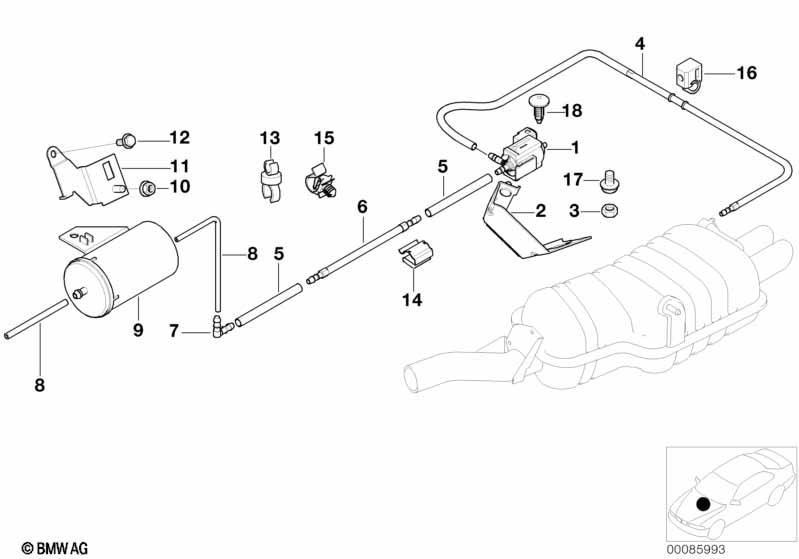

Parts diagram
Sponsored links
No.DescriptionSupplementQty From  Up To Part NumberPriceNotes Photo
01ELECTR.VALVE111741742712$46.70
01ELECTR.VALVE111747810831$46.70
02Bracket f electric change-over valve118107513300$11.66
03Hex nutM5163259128043$0.72
04VACUUM PIPE103/200118107504930$11.78+core
05VACUUM HOSE BLUE3,3X1,8?11747797082$17.14
06VACUUM PIPE118107504927$20.42
06VACUUM PIPE118107504931$20.42
07Support122116759728$0.79
08VACUUM HOSE BLACK3,5X1,8?07/200511727545323$14.82
08VACUUM HOSE BLACK3,5X1,8?11727545323$14.82
08VACUUM HOSE BLACK3,5X1,8?07/200511727545323$14.82
09Vacuum tank118101740207$24.37
10Hex nutM8-ZNS3107119904024$0.20
11Bracket, vacuum accumulator118107502473$8.22
12Hex bolt with washerM8X16107119905528$0.62
13Bracket162121364482$1.17
14Cable clampD=9/B=2,5161131350864$0.48
15Cable clamp161138368029$0.43
16BRAKE PIPE BRACKET103/200134301161567$0.77

Ads by RealOEM
Eres un experto usando catálogos de partes para BMW? Queremos ofrecerle una carrera con prospección como representante de servicio al cliente trabajando desde casa. Si usted esta interesado, pulsar acá y envié su currículo

Notes

  • +core = plus core charge (possibility of a return of the old part)
