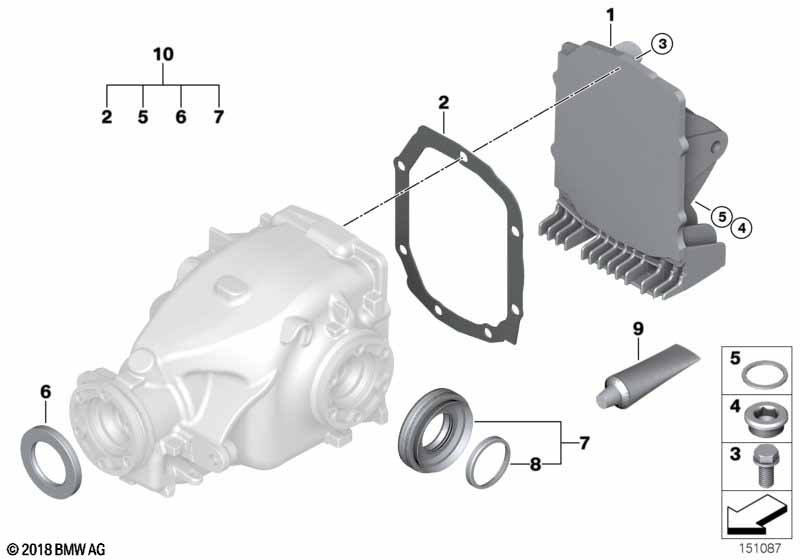

Z4 E85 Z4 3.0i Final drive, gasket set

Final drive, gasket set
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Transmission cover TYP 188K 1 33117512980 $139.10
Note Repair Manual
02 Gasket Asbestos Free TYP 188K 1 33121214719 $1.73 ENDED
Note Repair Manual
Use liquid sealing compound 33 10 0 404
517
03 Hex bolt with washer M10X60-8.8-ZNS 1 09/2003 07119904249 $1.53
Note Repair Manual
03 Hex bolt with washer M10X60-10.9ZNS3 1 09/2003 07119905148 $1.78
Note Repair Manual
03 Hex bolt with washer M10X25-10.9ZNS3 7 09/2003 07119905147 $1.07
Note Repair Manual
04 Screw plug with O-ring M22X1,5-ZNS3 2 33117525064 $3.91
Note Repair Manual
05 Gasket ring A22X27-AL 2 07119963355 $0.36
Note Repair Manual
06 Shaft seal 45X75X10 1 31507609535
Note Repair Manual
07 Shaft seal with lock ring TYP 188 2 33107505604 $18.30
Note Repair Manual
08 Lock Ring D=22,4 2 33131214961 $0.29
Note Repair Manual
09 Loctite 5970 liquid sealant 50ML 1 83190404517 $23.40
Note Repair Manual
10 GASKET SET DIFFERENTIAL TYP 188K 1 33101214618 $49.38 ENDED
Note Repair Manual
Notes
  • ENDED = the part has been discontinued (no longer available).
