E36 325i     Intake manifold system

Language:
Sponsored links
 RealOEM.com Home => Select another car => Engine => Intake manifold

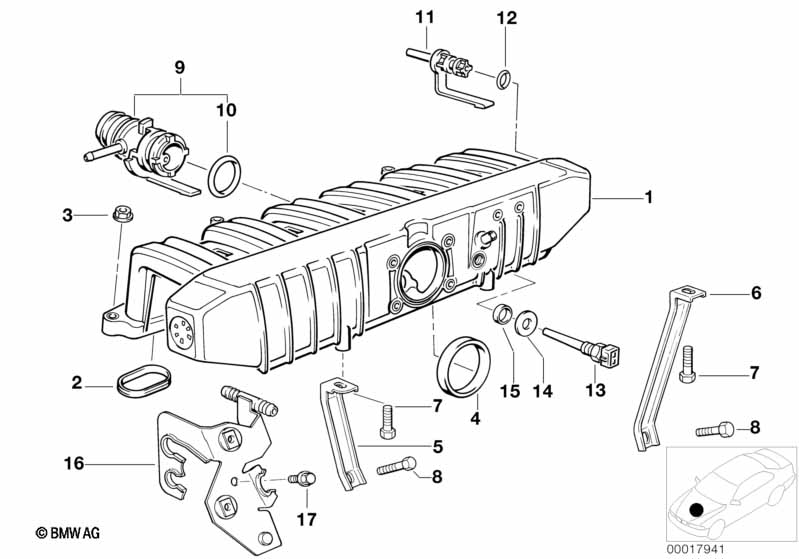

Parts diagram
Sponsored links
No.DescriptionSupplementQty From  Up To Part NumberPriceNotes Photo
01Intake manifold111611735727+core, ENDED
01Intake manifold111611735728+core
02Gasket611611717259$8.46
03Hex nut with plateAM7 ZNNIV SI?07129905541$0.64
04PROFILE-GASKET111611716174$15.02
05BRACKET FRONT111611735265$5.52
06BRACKET REAR111611738759ENDED
07Hex bolt with washerM6X20207119904527$0.44
08Hex bolt with washerM8X16-Z1207119913102$0.36
09Connector102/199211611730265$5.77
09Connector102/199211611738629$5.42
10O-ring24X3,5111611730725$6.08
11Connector111611735800$5.42
12O-ring9,12X3,53111611735859$1.19
13Temperature sensor air2500-OHM113621725323ENDED
14WASHER-GASKET111611735736$0.77
15Gasket ring111611735735$0.81

Ads by RealOEM
Eres un experto usando catálogos de partes para BMW? Queremos ofrecerle una carrera con prospección como representante de servicio al cliente trabajando desde casa. Si usted esta interesado, pulsar acá y envié su currículo

Notes

  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = The part has been discontinued.
