E36 325tds     DIESEL INJECTION PUMP

Language:
Sponsored links
 RealOEM.com Home => Select another car => Fuel Preparation System => FUEL INJECTION SYSTEM

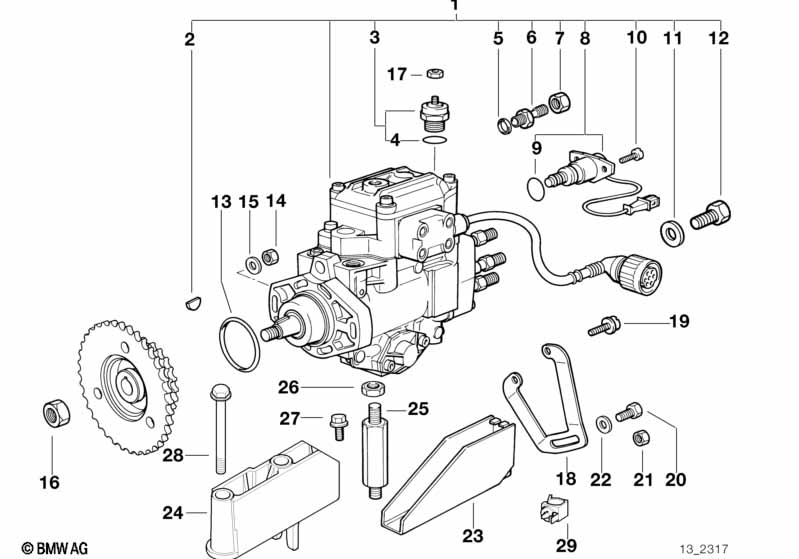

Parts diagram
Sponsored links
No.DescriptionSupplementQty From  Up To Part NumberPriceNotes Photo
01DIESEL INJECTION PUMPDDE2.1101/199413512244966$3,219.66
01AT-Injection pumpDDE2.1101/199413512245206$2,450.31
02WOODRUFF KEY101/199413511288587$4.50
03SOLENOID SWITCHELAB101/199413512243295$150.00
04O-ring8,5X2,5101/199413511705170$3.11
05Gasket ringA12X15,5 AL101/199407119963130$0.09
06Overflow valveOUT101/199413512245017
07Cap nut101/199413512245573
08Solenoid valve for injection adjuster101/199413512247401
09O-ring101/199413512245571$3.85
10Fillister-head screw101/199413512245572
11Gasket ring101/199413511288582$1.30
12Vent screw101/199413511288583$2.43
13O-ring63,17X2,62MM101/199413512245606
14Hex nut wiht flangeM8101/199411611713432$0.43
15Washer18X8,4X3101/199413512243795$0.30
16Hex nut with plateM12101/199413522247450$1.23
17Hex nutM5101/199407119922038$0.09
18Holder101/199413512244260
19Fillister head with washerM6X25-Z1212/199507119920161$0.38
20Hex boltM8X22101/199401/199607119913652$0.62
21Hex nutM8-8-ZNS3101/199607119904032$0.16
22Washer8,4101/199407119931331
23Support plate101/199401/199613512245344
24Holder101/199613512246191
25Spacer101/199401/199613512245251
26Hex nut wiht flangeM8101/199401/199611611713432$0.43
27Hex bolt with washerM8X16-Z1101/199401/199607119913102$0.36
28Hex bolt with washerM8X65-U1201/199607119905401$1.80
29Cable holder101/199624507557220$1.88

Ads by RealOEM
Eres un experto usando catálogos de partes para BMW? Queremos ofrecerle una carrera con prospección como representante de servicio al cliente trabajando desde casa. Si usted esta interesado, pulsar acá y envié su currículo

Notes

  • Items pictured but not listed are not installed on your vehicle.
  • Items pictured without a number are listed on another diagram.
