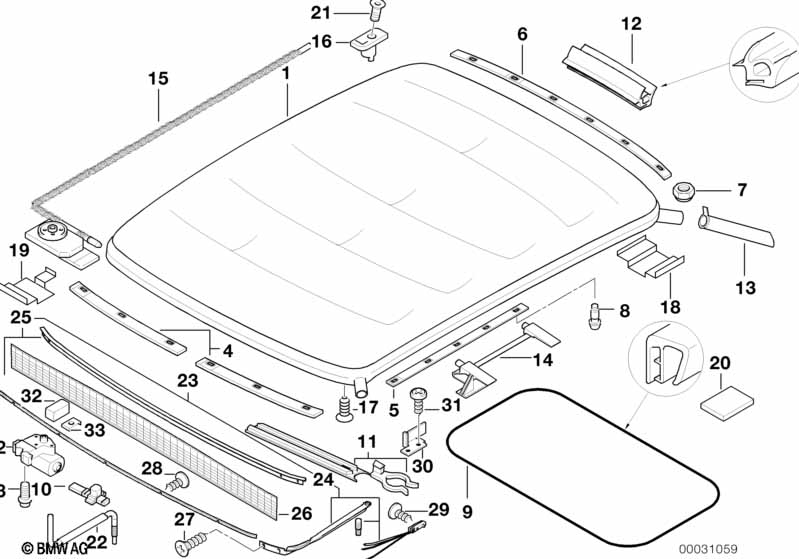

3' E36 318ti Folding sliding roof frame

Folding sliding roof frame
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Complete folding sliding roof frame SCHWARZ 1 54112267351 $4693.83
If necessary, with
Pos. 2
For vehicles with
Power unit for Allen
mounting socket/drive unit (emergency
operation)
02 Drive unit f folding sliding roof 1 67612496368 $427.60
For vehicles with
Drive unit for thread mounting/drive
(emergency operation)
02 Drive unit f folding sliding roof 1 67612267299 $427.60
03 Countersunk head screw M5X30 2 54112489790 $3.88
04 Rail front left 1 54112268579 $6.30
04 Rail front right 1 54112268580 $6.39
05 Lateral rail 4 54112268584 $8.89
06 Centre rear rail 1 54112268583 $7.52
07 Self-locking hex nut M6-8-ZNNIV SI 3 07119905949 $0.24
08 Torx bolt ISA M5X9 X 54112265999 $0.65
09 Synthetic strip ANTHRAZIT '93 1 54112267422 $43.89
10 Stopper 2 54112493942 $2.61
11 Gate cover 2 54112491201 $8.07
12 Folding sliding roof frame gasket L=3885MM 1 54112267292 $84.51
13 Outlet hose L=1760MM 4 54128185083 $5.40
14 Sliding piece left 2 54112267427 $35.82
14 Right sliding piece 2 54112267428 $35.82
15 Actuation unit left 1 54112267313 $34.11
15 Actuation unit right 1 54112267314 $34.11
16 Spacer 2 54112492838 $7.98
17 Fillister-head screw M5X9 8 54112492397 $1.89
18 Foil mould 4 54112491208 $3.98
19 Foil mould 4 54112491208 $3.98
20 Felt strip 40X70X0,8MM X 08/2000 65771377052 $0.47 ENDED
20 Set felt strip self-adhesive X 08/2000 51452353024
20 Set of felt strips SET X 08/2000 52207276398 ENDED
21 Torx bolt ISA M4X14 2 54128108881 $1.28
22 Emergency tool elect.window/sliding roof 1 04/1997 54121873572 $10.05 ENDED
22 Emergency tool elect.window/sliding roof 1 04/1997 54127199322 $9.78
22 Emergency tool electr.sliding roof 1 04/1997 54122496348 $9.78
23 retrofit kit net slipstream deflector 1 54112693340 $403.83 EBA 9410825
24 repair kit, slipstream deflector strut 1 54112693318 $68.03
25 Set of profile moldings, net deflector 1 54112693501 $79.66
26 Net insert 1 54112693008 $93.84
27 Screw for thermoplastic plastics ST.3X6 4 07129901520 $2.05
28 Screw 5 54112496819 $4.96 ENDED
29 Screw 2 54112496818 $2.91
30 Set of sliding members 1 54112693502 $28.28
31 Torx bolt ISA M4X8 2 07119900799 $1.53
32 Cover for pinion 1 54112267361 $5.64
33 Guide cable 1 54117890018 $13.57
Notes
  • ENDED = the part has been discontinued (no longer available).
  • EBA = Einbauanleitung (Installation instructions)
