| No. |
Description |
Supp. |
Qty |
From |
Up To |
Part Number |
Price |
|
Notes |
| i |

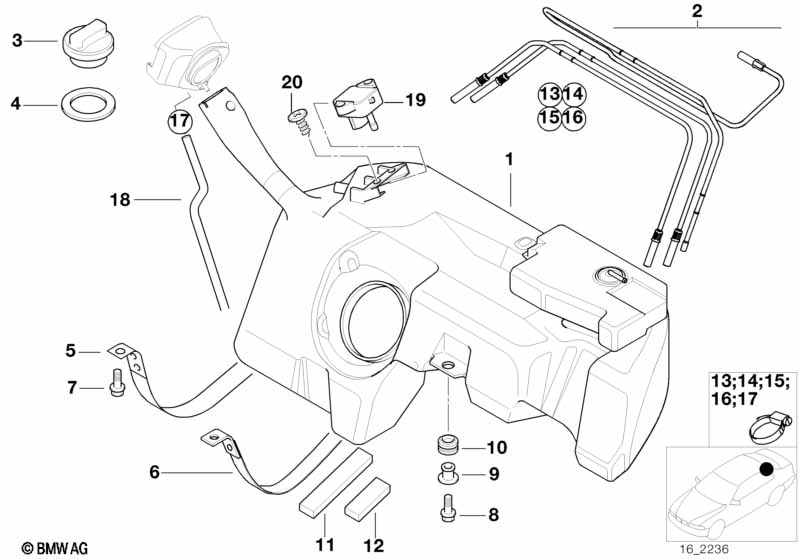

FILLER CAP
Tank filler pot
HG 51 |
|
|
| 01 |
PLASTIC FUEL TANK WITH CATALYST |
50L |
1 |
|
09/1998 |
16111183548 |
$401.68 |
|
|
| 01 |
Plastic fuel tank |
|
1 |
09/1998 |
08/1999 |
16111184713 |
$858.68 |
|
|
| 01 |
Plastic fuel tank |
|
1 |
08/1999 |
|
16116751581 |
$972.92 |
|
|
| 02 |
FUEL PIPES SET |
|
1 |
|
09/1998 |
16111184724 |
$192.00 |
|
|
| 02 |
FUEL PIPES SET |
|
1 |
09/1998 |
|
16111184719 |
$253.47 |
|
|
| 03 |
Lockable filler cap |
CODE |
1 |
|
09/1998 |
16116750571 |
$80.48 |
|
+core |
| 03 |
Lockable filler cap |
CODE |
1 |
09/1998 |
04/1999 |
16111184709 |
$89.40 |
|
|
| 03 |
FILLER CAP WITHOUT LOCK |
|
1 |
04/1999 |
08/1999 |
16111184664 |
$11.65 |
|
|
| 03 |
Filler cap |
|
1 |
08/1999 |
|
16116754492 |
$17.88 |
|
|
| 04 |
Rubber seal |
|
1 |
07/2001 |
|
16116755071 |
$1.92 |
|
ENDED |
| 05 |
Support |
|
1 |
|
|
16111185025 |
$11.40 |
|
|
| 06 |
Tension strap |
|
1 |
|
|
16111185032 |
$26.17 |
|
|
| 07 |
Hex bolt with washer |
M8X25-Z1 |
2 |
|
|
07119901687 |
$0.62 |
|
|
| 08 |
Hex bolt with washer |
M8X30-Z2 |
1 |
|
|
07119900085 |
$0.41 |
|
|
| 09 |
Spacer sleeve |
|
1 |
|
|
16111182610 |
$4.63 |
|
ENDED |
| 09 |
Spacer sleeve |
|
1 |
|
|
16137194473 |
$5.35 |
|
|
| 10 |
Rubber grommet |
|
1 |
|
|
16111182609 |
$1.13 |
|
|
| 11 |
SOUND ABSORBER |
100X25X8 |
8 |
|
|
16111183268 |
$5.00 |
|
|
| 13 |
Hose clamp |
12,8-15,3 |
2 |
|
|
16121180240 |
$0.77 |
|
|
| 14 |
Hose clamp |
D=10,8-13,3 |
6 |
|
|
32411156956 |
$0.62 |
|
|
| 15 |
Hose clamp |
12,8-15,3 |
1 |
|
|
16121180240 |
$0.77 |
|
|
| 16 |
Hose clamp |
23,9-27,1 |
2 |
|
|
11631716970 |
$0.79 |
|
|
| 17 |
Hose clamp |
8,8-10,5MM |
1 |
|
|
16131183366 |
$1.03 |
|
|
| 18 |
Outlet pipe |
|
1 |
|
|
16131183288 |
$7.70 |
|
|
| 19 |
FUEL TANK PRESSURE SENSOR |
|
1 |
|
|
16141182581 |
$146.63 |
|
|
| 20 |
Sheet metal screw |
ST2,9X25-Z1- |
2 |
|
|
07119900708 |
$6.58 |
|
|
