E28 535i     EXP.TANK/ACTIVATED CARBON CONTAINER

Language:
Sponsored links
 RealOEM.com Home => Select another car => Fuel Supply => VENTILATION

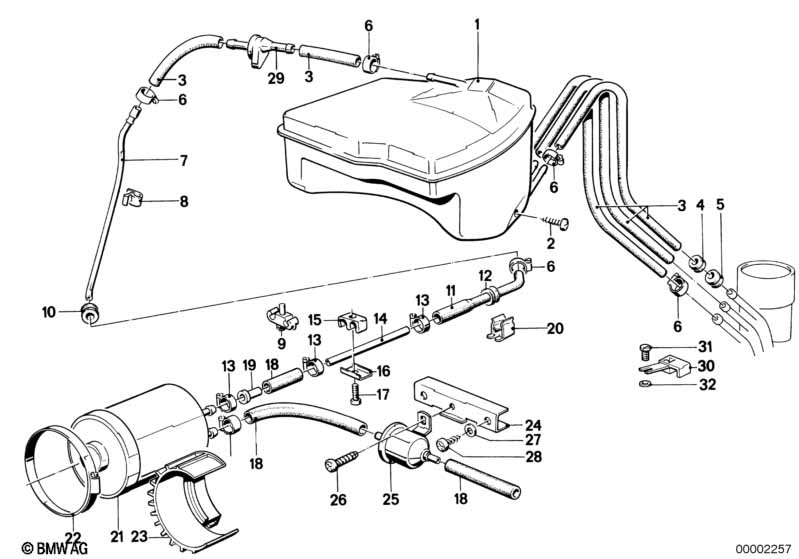

Parts diagram
Sponsored links
No.DescriptionSupplementQty From  Up To Part NumberPriceNotes Photo
01EXPANSION TANK110/198416131152375$20.09
01EXPANSION TANK110/198416131177706$144.17
02Hex head screwST6,3X19-C-Z2107119916967$0.29
03Fuel hose6X11MM?13311272750$11.62
04Grommet316131152490$8.97
05Grommet316121119376$0.83
06Hose clampL10-12901/197916111177646ENDED
06Hose clampL=9-12907129952102$1.18
07Vent pipe116131152524$12.45
08Cable clampD=6MM163121364431$0.93
09Clamp216131152489$0.67
10Grommet216124780109$1.51
11Hose116131152517ENDED
12Rubber grommet234321118503ENDED
13Hose clampL10-16510/197816121180237ENDED
13Hose clampL12-15507129952104$1.18
14PipeL=2574MM116131152903ENDED
15CLAMPING916121107928$4.00
16Bracket916121155060$1.08
17SELF TAPPING SCREW934321119239$0.27
18Fuel hose8X13MM?06/199613311722262ENDED
18Fuel hose8X13MM?16121180409$20.43
19Reducer116120480125$1.48
20BRACKET BREATHER PIPE216131177583$1.08
21Activated Charcoal Filter103/198716121108926$131.24
21Activated Charcoal Filter103/198716131180463$87.89+core
22Hose clampL89-96107129952135$2.18
23BRACKET ACTIVATED CARBON CONTAINER103/198716131179483ENDED

Ads by RealOEM
Eres un experto usando catálogos de partes para BMW? Queremos ofrecerle una carrera con prospección como representante de servicio al cliente trabajando desde casa. Si usted esta interesado, pulsar acá y envié su currículo

Notes

  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = The part has been discontinued.
