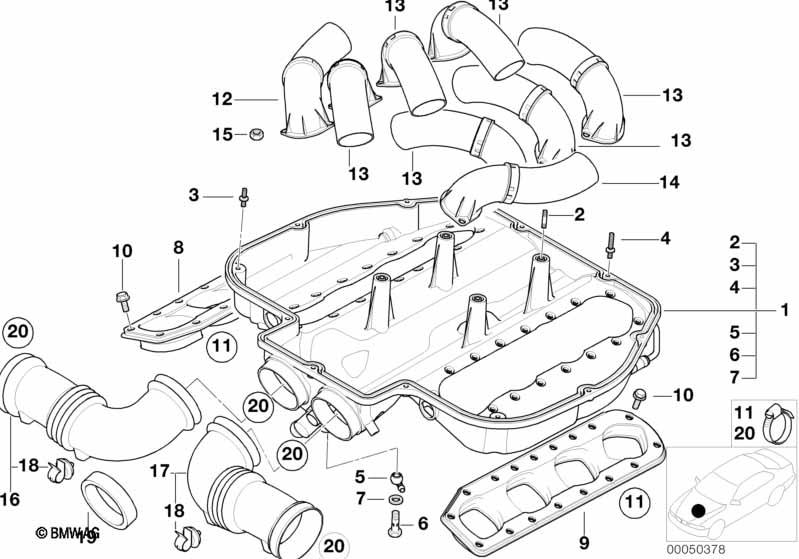

5' E39 M5 Intake manifold,air collector lower part

Intake manifold,air collector lower part
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Air collector bottom part 1 12/1999 11611407386 $1067.60 ENDED, +core
01 Air collector bottom part 1 12/1999 11617831265 $1067.60 +core
02 Stud bolt M6X28-ZN 4 07129908111 $0.63
03 Collar screw M6X29 5 12/1999 11611406664 $8.26
03 Collar screw M6X29 11 12/1999 11611406664 $8.26
04 Collar screw M6X41 6 12/1999 11611406665 $8.83
04 Collar screw M6X41 4 12/1999 11611406665 $8.83
05 Connector 1 11611407391 $19.11
06 Hollow bolt 1 07119905175 $3.29
07 Gasket ring A10X13,5-CU 2 07119963072 $0.11
08 Gasket-flange ZYL. 1-4 1 11611406636 $119.92
09 Gasket-flange ZYL. 5-8 1 11611406637 $119.92
10 Hex bolt with washer M6X16-U1-8.8 33 07119904524 $0.25
11 Hose clamp L71-78 8 07129952129 $1.48
12 Funnel ZYL. 1 1 11617830452 $43.13 +core
13 Funnel ZYL.2,3,4,6,7,8 6 11617830453 $43.13 +core
14 Funnel ZYL. 5 1 11617830454 $43.13 +core
15 Hex nut AM5-8-ZNS3 16 07129902975 $0.36
16 Right rubber boot ZYL. 1-4 1 11611405875 $38.15 +core
17 Left rubber boot ZYL. 5-8 1 11611405876 $38.15 +core
18 Hose clamp D=6/8 MM 4 12511714147 $0.32
19 Gasket ring 4 11611406807 $4.92
20 Hose clamp L83-90 4 07129952133 $1.78
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
