E39 525tds     FUEL INJECTION SYSTEM DIESEL

Language:
Sponsored links
 RealOEM.com Home => Select another car => Fuel Preparation System => FUEL INJECTION SYSTEM

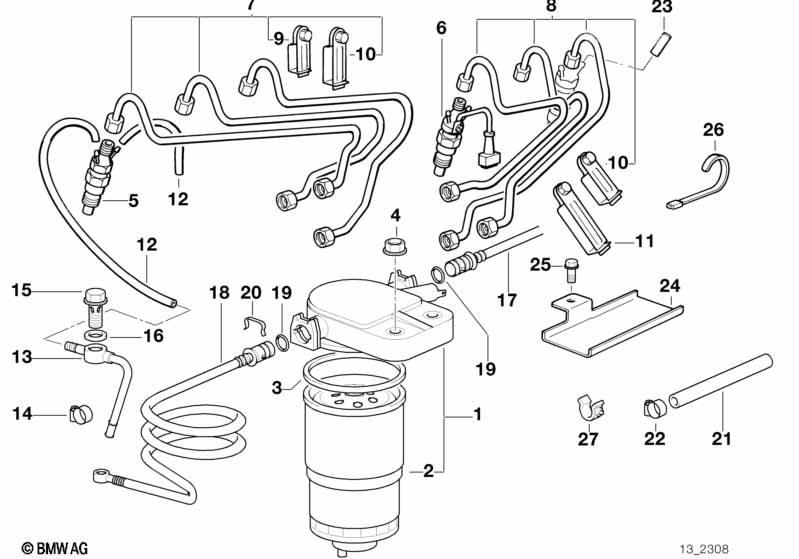

Parts diagram
Sponsored links
No.DescriptionSupplementQty From  Up To Part NumberPriceNotes Photo
01FUEL STRAINER WITH HEATING103/199713322246133
01FUEL STRAINER WITH HEATING113322246133
02FILTER CARTRIDGE113327786647$48.98
03O-ring113322246976
04Self-locking collar nutM8-8-ZNS3203/199707119904295ENDED
04Self-locking collar nutM8-10 ZNS3207119905374
05INJECTION NOZZLE513512245810$204.30
05AT-INJECTION NOZZLE513512246082
06AT-INJECTION NOZZLE WITH TRANSMITTER113532246083$390.60
07INJECTION PIPEZYL.1-3113532246559$78.96
08INJECTION PIPEZYL.4-6113532246560$78.96
09Pipe clamp113532246555
10Pipe clamp213532246557
11Pipe clamp113532246558
12Fuel hose3X7MM?13532246959$33.57
13ConnectorDDE2.1113512246147
15HOLLOW BOLT101/200511421338506$15.92
15HOLLOW BOLT107119905427$2.25
16Gasket ringA12X17-AL207119963150$0.09
17Fuel feed line113532246973
18Fuel feed line113532246197
19O-ring13X1,5413532243717$1.88
20Spring clip213322243853$2.95
21Fuel hose8X13MM?03/199716121180409$20.43
21Fuel hose8X13MMX1000?13537563456$44.77
22Hose clampL12-15207129952104$1.18
23Cap3,0MM/FPM113532246127$1.87
24GUARD FOR FUEL PIPE116121181550$3.17
25Hex bolt with washerM6X16-U1-ZNS3104/199407119903844ENDED
25Hex bolt with washerM6X16-U1-8.8107119904524$0.25
26Cable tieL=292MM/B=4,8MM161131377134$0.77
27Hose clamp113311711198

Ads by RealOEM
Eres un experto usando catálogos de partes para BMW? Queremos ofrecerle una carrera con prospección como representante de servicio al cliente trabajando desde casa. Si usted esta interesado, pulsar acá y envié su currículo

Notes

  • ENDED = The part has been discontinued.
