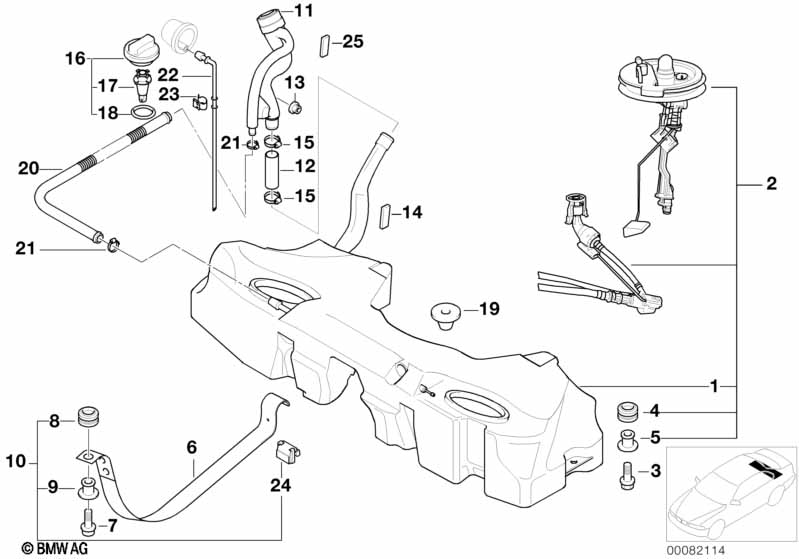

5' E39 525tds Fuel tank

Fuel tank
No. Description Supp. Qty  From   Up To  Part Number Price Notes
02 Plastic fuel tank with left sensor 70L 1 07/2000 16146752365
only in conjunction with
-- Right fuel level sensor 1 07/2000 16146752370 $86.75
03 Fillister-head screw M8X30 2 12/2003 07119919643 $0.82 ENDED
03 ISA screw M8X30-8.8-ZNS3 2 07129904067 $2.43
03 Fillister-head screw M8X30-8.8-ZNS3 2 08/2016 07119902829
04 Rubber grommet 2 16111182609 $1.13
05 Spacer sleeve 2 16111182610 $4.63 ENDED
05 Spacer sleeve 2 16137194473 $5.35
06 Holding strap 2 16111184911 $10.62
07 Fillister-head screw M8X30-8.8-ZNS3 2 08/2016 07119902829
07 Fillister-head screw M8X30 2 12/2003 07119919643 $0.82 ENDED
only in conjunction with
-- Washer 8,4X24X2-ZNS3 2 12/2003 07119904164 $0.40
07 ISA screw M8X30-8.8-ZNS3 2 07129904067 $2.43
only in conjunction with
-- Washer 8,4X24X2-ZNS3 2 07119904164 $0.40
08 Rubber grommet 2 16111182454 $0.93
09 Spacer sleeve 2 16117195118
10 Holding strap 2 16111184911 $10.62
11 Plastic filler pipe 1 07/2001 16116758275 $55.80
only in conjunction with
-- Filler cap 1 07/2001 16117193372
11 Plastic filler pipe 1 07/2001 16116758275 $55.80
12 Fuel hose 1 16111183519
13 Hex nut BM6-8-ZNS3 1 09/1998 07129904870 $0.36
13 Hex nut M6 1 16111184607 $1.87
14 Base 1 16111182911 $1.23
15 Hose clamp L42-48 2 07129952119 $1.15
16 Filler cap 1 07/2001 16111184731 $18.43
16 Filler cap 1 07/2001 16117193372
16 Filler cap without lock 1 09/1998 16111184717 $11.65
MODEL WITH
Filler cap pin
17 Filler cap pin 1 07/2001 16111183342 $0.72 ENDED
17 Filler cap pin 1 07/2001 16111184156 $0.62 ENDED
19 Pushrod seal 2 51211913779 $1.03
20 Vent hose 1 09/1998 16131183605
21 Hose clamp 23,9-27,1 2 11631716970 $0.79
21 Hose clamp 12,8-15,3 1 16121180240 $0.77
22 Outlet pipe 1 16111183478 $4.87
23 Cable clamp D=8/B=1,5 1 61131354726 $0.42
24 Damper rubber 2 16111183136 $1.28
25 Set felt strip self-adhesive 1 51452353024
Notes
  • ENDED = the part has been discontinued (no longer available).
