E39 528i     3/2-way valve and fuel hoses

Language:
Sponsored links
 RealOEM.com Home => Select another car => Fuel Preparation System => Fuel Supply

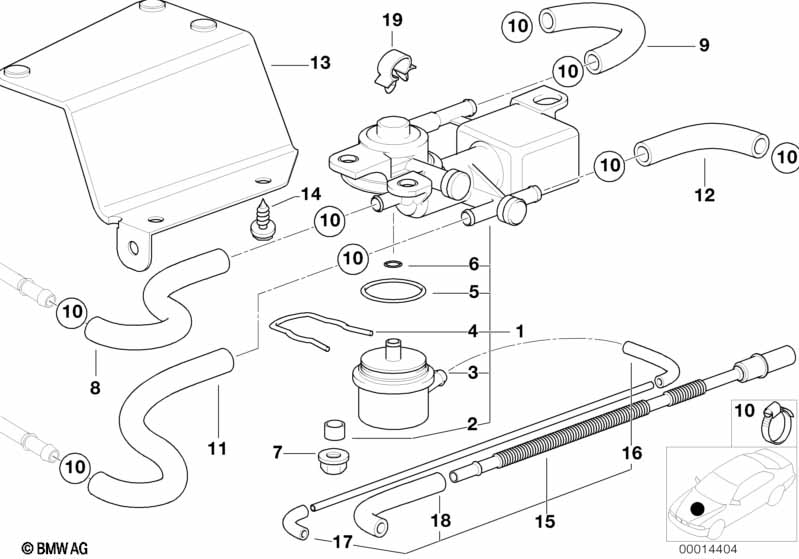

Parts diagram
Sponsored links
No.DescriptionSupplementQty From  Up To Part NumberPriceNotes Photo
013/2 directional control valve109/199713311740281$134.45+core
02Bush209/199713311740937$1.27
03PRESSURE REGULATOR3,5BAR/PIERBURG109/199713531729319$75.10
04CLAMPING SPRING109/199707/199913531341694$4.84
04Clamping bracket109/199713321440346$1.82
05O-ring20X2,5109/199713531720251$4.38
06O-ring5X1,5109/199713531720252$3.75
07Hex nut with plateAM6-8-ZNNIV SI309/199707129904553$0.64
08Hose109/199713311707828$22.60
09Hose109/199713311435092$26.95
10Hose clampL12-15809/199707129952104$1.18
11Hose109/199713311707827$22.60
12Hose109/199713311707829$22.60
13holder, 3/2-way control valve109/199713318215357$5.75
14Hex bolt with washerM6X20MM209/199751712752359$1.34
16VACUUM HOSE BLACK3,5X1,8?09/199711727545323$14.82
19Cable holder109/199712141717663$1.45

Ads by RealOEM
Eres un experto usando catálogos de partes para BMW? Queremos ofrecerle una carrera con prospección como representante de servicio al cliente trabajando desde casa. Si usted esta interesado, pulsar acá y envié su currículo

Notes

  • +core = plus core charge (possibility of a return of the old part)
