5' E39 540i Hydro steering box

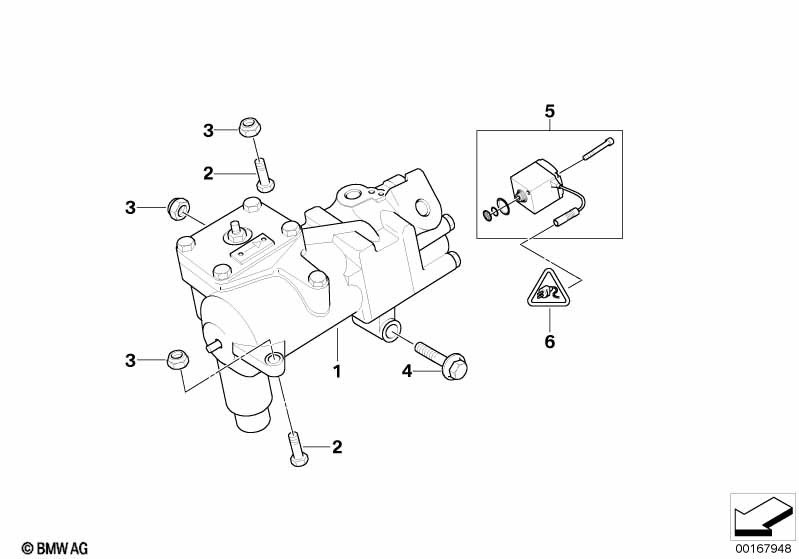

Hydro steering box
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Exch. hydro steering gear 1 32131091789 $1622.70
01 Exch. hydro steering gear Servotronic 1 32131091791 $1833.65
02 Collar screw M10X40 2 32201092471 $2.05
03 Self-locking hex nut M10 3 04/2003 32201092453 $0.80 ENDED
03 Hex nut M10-10-ZNS3 3 04/2003 07119905032 $0.71
03 Hex nut wiht flange M10-10 ZNS3 3 33306760587 $0.78
04 Collar screw M10X60 1 32201092472 $2.50
For vehicles with
Servotronic

=Yes
05 Torque converter servotronic 1 32131092412 $245.46
CONTROL UNIT SERVOTRONIC
INCLUDED IN BASIC MODULE, MAIN GROUP 61
06 Universal socket housing uncoded 2 POL. 1 61131392246 $5.53
only in conjunction with
-- Contact bushing MQS ELA with cable 0,75 QMM 2 61130006665 $1.97
-- Contact bushing MQS ELA with cable 0,2-0,5 MM² AG 2 61130056961
Notes
  • ENDED = the part has been discontinued (no longer available).
