E39 528i     SINGLE PARTS FOR REAR WINDOW CLEANING

Language:
Sponsored links
 RealOEM.com Home => Select another car => Vehicle electrical system => Windshield wiper syst/head lamp cleaning

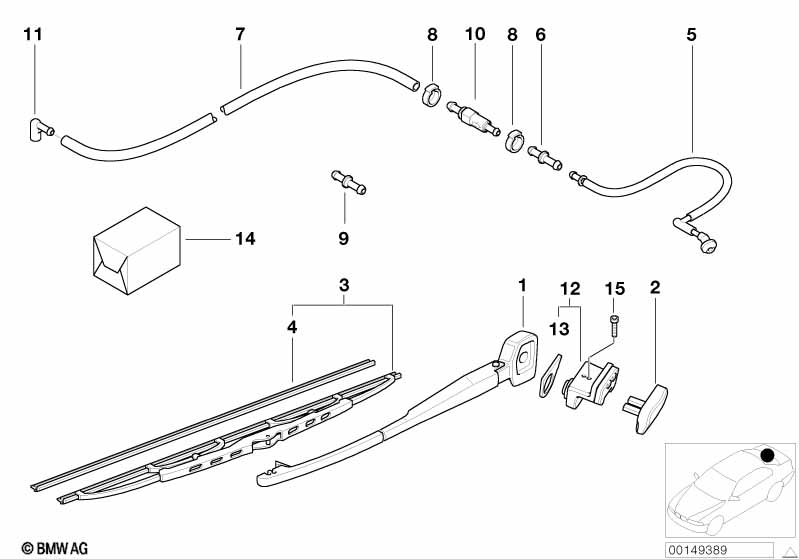

Parts diagram
Sponsored links
No.DescriptionSupplementQty From  Up To Part NumberPriceNotes Photo
01Rear window wiper arm161628221453$26.53
02Cover f rear window key button161318372074$8.90
03WIPER BLADE161627074477$24.58
04Wiper rubber161628239164$6.64
05SPRAY NOZZLE WITH HOSE161688224840$13.48
ONLY FOR HOSE REPAIR
06Connection piece?61661382908$0.48
07Hose line?61668362762$2.92
08Hose clamp8-9.5MM?16131379229$0.72
09CONNECTION PIPE161688391876$0.42
10VALVE F WINDSHIELD CLEANING161688391402$4.35
12Rear window key button with micro switch161318363631$38.47
Contains screw for cover
13Rear window key button gasket161318372075$7.40
14HOSE LINE REPAIR KIT161688254288$22.87
15Torx screw107146978500$1.07

Ads by RealOEM
Eres un experto usando catálogos de partes para BMW? Queremos ofrecerle una carrera con prospección como representante de servicio al cliente trabajando desde casa. Si usted esta interesado, pulsar acá y envié su currículo

Notes

  • Items pictured but not listed are not installed on your vehicle.
  • Items pictured without a number are listed on another diagram.
