E64 650i     Intake muffler/Filter cartridge/HFM

Language:
Sponsored links
 RealOEM.com Home => Select another car => Fuel Preparation System => Intake muffler

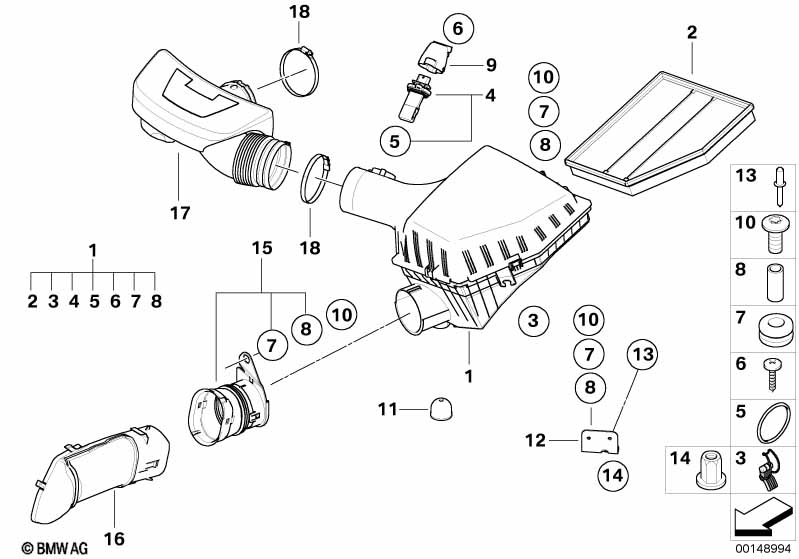

Parts diagram
Sponsored links
No.DescriptionSupplementQty From  Up To Part NumberPriceNotes Photo
01Intake muffler113717567166$525.31
02Air filter element113717521023$31.60
03Tensioner513717525713$1.41
04Hot-film air mass meter113627566990$306.24
05O-ring33X3113627553932$2.48
06Torx screw5X18213627531817$0.60
07Rubber grommet313711702508$3.34
08Sleeve313717525711$3.95
09Cover113717577710$5.82
10Fillister head screw307147072901$0.53
11RUBBER BUFFER113717539903$6.32
12Bracket. intake silencer113717521015$7.68
13Blind rivet4,8207129948780$0.38
14Blind rivet nutM6132411094185$1.13
15Intake duct113717521017$34.20
16Intake duct113717521014$34.20
17Rubber boot113717533931$87.15
18Hose clampL95-102207129952137$1.52

Ads by RealOEM
Eres un experto usando catálogos de partes para BMW? Queremos ofrecerle una carrera con prospección como representante de servicio al cliente trabajando desde casa. Si usted esta interesado, pulsar acá y envié su currículo

Notes

  • Items pictured but not listed are not installed on your vehicle.
  • Items pictured without a number are listed on another diagram.
