E46 325xi     Single parts f transfer case NV 124

Language:
Sponsored links
 RealOEM.com Home => Select another car => Transfer case/e-vehicle transmission => Individual transmission parts

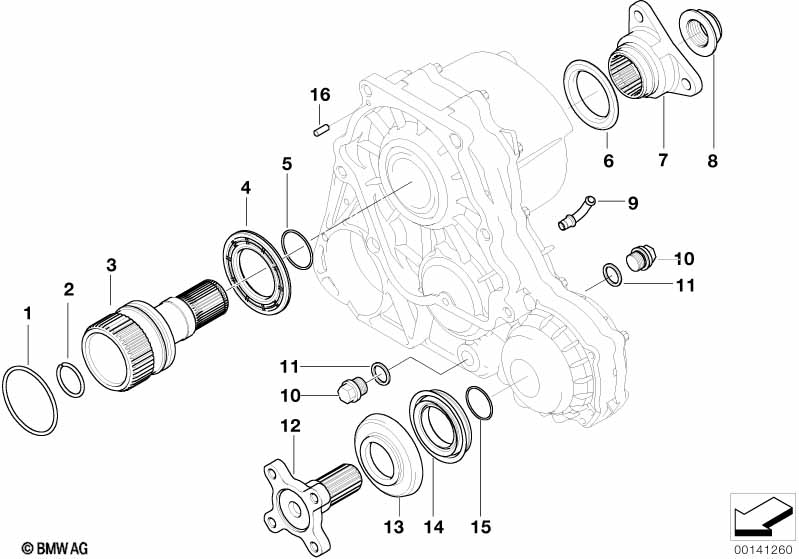

Parts diagram
Sponsored links
No.DescriptionSupplementQty From  Up To Part NumberPriceNotes Photo
For vehicles with
Manual Transmission
01O-ring60,4X3,5127107542833$8.45
02SNAP RING127107546690$6.11
03Adapter103/200327107502843ENDED
03Adapter127107525789$490.00+core
only in conjunction with
--O-ring39,0X2,25127107536962$3.75
04Shaft seal103/200327107535718$32.73
04Shaft seal103/200327107531661$32.73
05O-ring39,0X2,0103/200327137531662$3.39
05O-ring39,0X2,25103/200327107536962$3.75
06Shaft seal127127531519$32.73
07Output flange, rear127127531524$229.71+core
08Flange nut127127531522$9.95
09Vent pipe127107535826$5.57
10Screw plugM18X1,5227111226467$8.39
11Gasket ringA18X22-CU207119963308$0.25
12Output flange, front127147531525$188.11+core
13Dustcover plate127147531521$7.84
14Shaft seal127147531520$32.73
15O-ring33,04X1,77127107535827$1.73
16Dowel pin6M6X16103/200324101219418$1.38

Ads by RealOEM
Eres un experto usando catálogos de partes para BMW? Queremos ofrecerle una carrera con prospección como representante de servicio al cliente trabajando desde casa. Si usted esta interesado, pulsar acá y envié su currículo

Notes

  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = The part has been discontinued.
