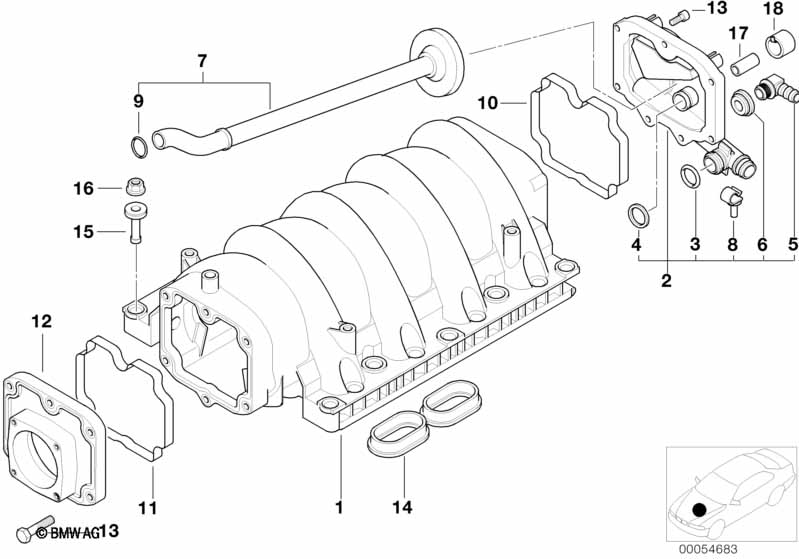

| No. | Description | Supplement | Qty | From | Up To | Part Number | Price | Notes | Photo |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Intake manifold | 1 | 11611435361 | $615.48 | |||||
| 02 | Cover | 1 | 11617508541 | $95.89 | |||||
| 03 | O-ring | 20,0X3,55 | 1 | 11151736140 | $2.10 |  |
|||
| 04 | PROFILE-GASKET | 1 | 11151702291 | $3.46 | |||||
| 05 | Connector | 1 | 11611741735 | $11.03 | |||||
| 06 | Blind plug | 1 | 11611704792 | $9.56 | |||||
| 07 | Vent pipe | 1 | 11611742826 | $30.86 | |||||
| 08 | Bracket | 1 | 11611704805 | $1.28 | |||||
| 09 | O-ring | 12,5X2,0MM | 1 | 11611745195 | $1.19 | ||||
| 10 | PROFILE-GASKET | 1 | 11611729728 | $7.54 | |||||
| 11 | PROFILE-GASKET | 1 | 11611729727 | $7.54 | |||||
| 12 | FLANGE | 1 | 11617506742 | $43.93 | |||||
| 13 | Screw | M6X25 | 13 | 11141460752 | $0.60 | ||||
| 14 | PROFILE-GASKET | 4 | 11611433328 | $27.37 | |||||
| 15 | Spacer | 10 | 11611736648 | $3.54 | |||||
| 16 | Hex nut with plate | AM7 ZNNIV SI | 10 | 07129905541 | $0.64 | |
|||
| For vehicles with without catalytic converter | S199A=Yes | ||||||||
| 17 | Cap | D=5,0MM | 1 | 11611437694 | $3.39 | ||||
| 18 | Supporting ring | 1 | 11611437456 | $1.12 | |||||
Ads by RealOEM
Eres un experto usando catálogos de partes para BMW?
Queremos ofrecerle una carrera con prospección como
representante de servicio al cliente trabajando desde casa.
Si usted esta interesado, pulsar acá y envié su currículo
Notes
- Items pictured but not listed are not installed on your vehicle.
- Items pictured without a number are listed on another diagram.
