7' E32 730i Upper timing case

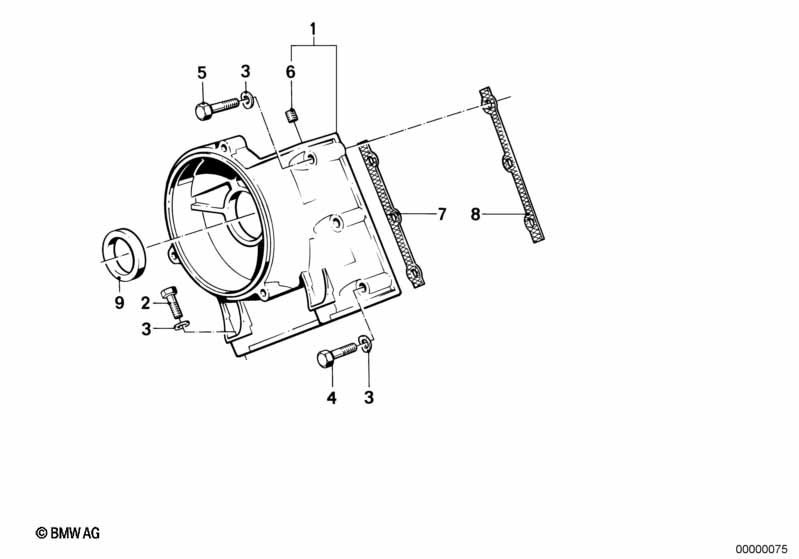

Upper timing case
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Timing case cover, top 1 11141277001 $161.65
02 Hex bolt M6X25 2 07119913589 $0.62
02 Hex bolt with washer M6X25-Z3 2 07119915046 $0.47
03 Wave washer B6-ZNS3 8 07119904496 $1.78 ENDED
03 Wave washer B6 8 07119932099 $0.38
04 Hex bolt M6X35 4 04/1994 07119901189 $0.60 ENDED
04 Hex bolt M6X35-8.8-ZNS3 4 07119902998 $0.38
04 Hex bolt with washer M6X35-Z3 4 07/2007 07119913712 $0.51 ENDED
04 Hex bolt with washer M6X35-U1-8.8 4 07/2007 07119904589 $0.47
05 Hex bolt M6X40 2 07119912310 $0.43
05 Hex bolt with washer M6X40-Z3 2 07119913951 $0.30
06 Threaded plug M6 2 11121744337 $1.68
07 Gasket left asbesto-free 1 11141726729 $1.71
08 Gasket right asbesto-free 1 11141726727 $1.71
09 Shaft seal 28X40X7 1 11141271415 $13.15 ENDED
09 Shaft seal 28X40X7 1 11141709060
Notes
  • ENDED = the part has been discontinued (no longer available).
