E38 740i     REAR SPRING STRUT, LEVELLING DEVICE

Language:
Sponsored links
 RealOEM.com Home => Select another car => Rear Axle => Rear axle suspension

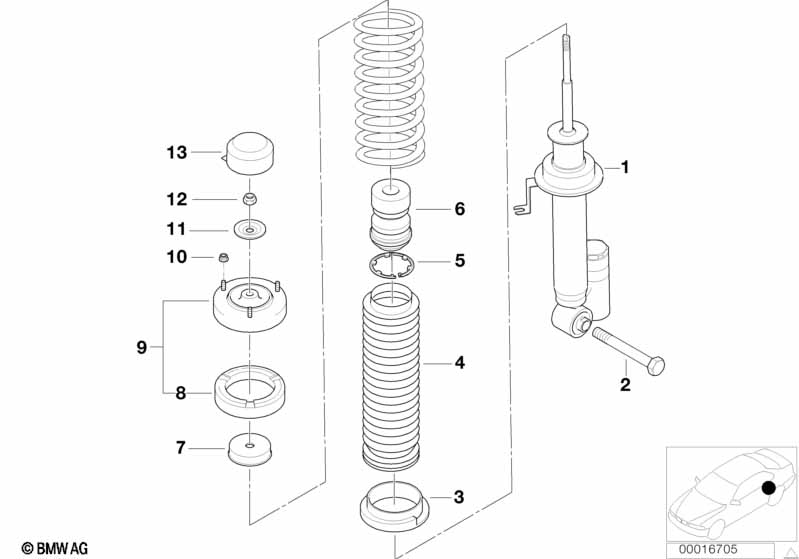

Parts diagram
Sponsored links
No.DescriptionSupplementQty From  Up To Part NumberPriceNotes Photo
01REAR LEFT SPRING STRUT137121091411$770.66
Required for repair
01REAR RIGHT SPRING STRUT137121091412$770.66
Required for repair
--Hex boltM14X1,5X85107119901378$2.35
02Hex boltM14X1,5X85207119901378$2.35
03SPRING PAD LOWER233521131523$7.48
04Rubber boot231321125878$12.62
05Supporting ring237121134899$2.97
06Additional shock absorber, rear233531091564$20.55
07SUPPORTING CUP237121090310$3.65
08SPRING PAD UPPER233531133048$9.40
09Guide support237121091240$28.83
10Self-locking collar nutM8-8-ZNS3607119904295ENDED
10Self-locking collar nutM8-10 ZNS3607119905374
11Plate237121090307$4.53
12SELF-LOCKING HEX NUTM14X1,5-05 ZNS3231106774714$1.12
13PROTECTION CAP233521090281$3.00

Ads by RealOEM
Eres un experto usando catálogos de partes para BMW? Queremos ofrecerle una carrera con prospección como representante de servicio al cliente trabajando desde casa. Si usted esta interesado, pulsar acá y envié su currículo

Notes

  • ENDED = The part has been discontinued.
