7' E38 740i UPPER TIMING CASE

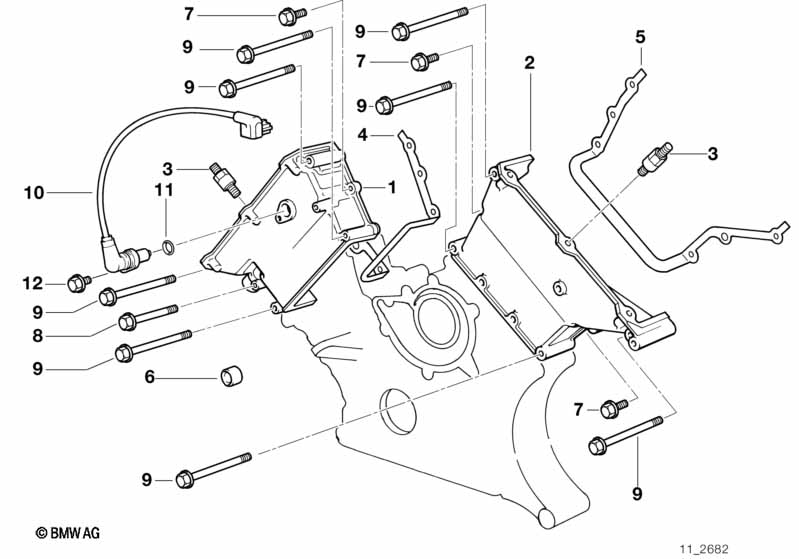

UPPER TIMING CASE
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Timing case cover, top ZYL.1-4 1 09/1998 11141742168 $96.98 +core
02 Timing case cover, top ZYL.5-8 1 09/1998 11141742171 $96.98 +core
03 Stud bolt 6 09/1998 11121733295 $2.23
04 PROFILE-GASKET ZYL.1-4 1 09/1998 11141741127
05 PROFILE-GASKET ZYL.5-8 1 09/1998 11141741128
06 Gasket ring 8,1X3,5X7,7 1 09/1998 11141736758 $1.71
07 Hex bolt with washer M6X30-Z1 3 09/1998 11147558183 $0.62
08 Hex bolt with washer M6X65-Z1 1 09/1998 11141438558 $0.72
09 Hex bolt with washer M6X80-Z1 8 09/1998 11141747633 $1.08 ENDED
09 Hex bolt with washer M6X80-ZNNIV SI 8 09/1998 07119906085
10 Camshaft position sensor 1 09/1998 12141742185 $116.05
11 O-ring 17X3 1 09/1998 12141748398 $1.20
12 ISA screw M6X12-8.8-ZNNIV 1 09/1998 07129905867
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
