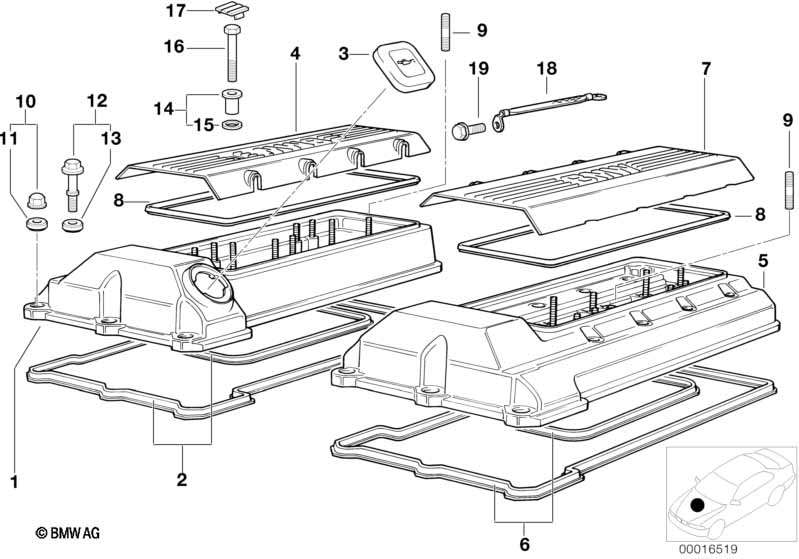

| No. | Description | Supplement | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| ONLY APPLIES TO CYLINDER 1-4 | |||||||||
| 01 | ROCKER BOX COVER RIGHT | 1 | 09/1998 | 11121703172 | $324.26 | +core | |||
| 02 | Set of profile gaskets | ZYL.1-4 | 1 | 09/1998 | 11120034104 | $38.45 | |||
| 03 | Cover lid | 1 | 09/1998 | 11127509328 | $7.78 | ||||
| 04 | COVERING RIGHT | 1 | 09/1998 | 11121702856 | $21.56 | ||||
| ONLY APPLIES TO CYLINDER 5-8 | |||||||||
| 05 | ROCKER BOX COVER LEFT | 1 | 09/1998 | 11121703175 | $324.26 | +core | |||
| 06 | Set of profile gaskets | ZYL.5-8 | 1 | 09/1998 | 11120034105 | $38.45 | |||
| 07 | Covering left | 1 | 09/1998 | 11121702857 | $21.56 | ||||
| 08 | PROFILE-GASKET | 2 | 09/1998 | 11121733969 | $12.62 | ||||
| 09 | Stud bolt | M6X35-ZN | 16 | 09/1998 | 07129908103 | $0.25 | |||
| 10 | Cap nut | M6 | 16 | 09/1998 | 11121747162 | $3.10 | |||
| 11 | Rubber seal | 16 | 09/1998 | 11121437395 | $1.17 | ||||
| 12 | Collar screw | M6X42,5 | 6 | 09/1998 | 11127568809 | $3.17 | |||
| 12 | Collar screw | M6X42,5 | 6 | 09/1998 | 11127568809 | $3.17 | |||
| 13 | Rubber seal | 6 | 09/1998 | 11121721879 | $1.20 | ||||
| 14 | spacer sleeve with O-ring | 4 | 09/1998 | 11121715404 | $2.03 | ||||
| 15 | Gasket ring | 4 | 09/1998 | 61311459030 | $1.15 | ||||
| 16 | Hex bolt with washer | M6X40-Z1-ZNS | 4 | 09/1998 | 07119901799 | $3.39 | |||
| 17 | Covering cap | 4 | 09/1998 | 11121736007 | $1.10 | ||||
| 18 | Earth strap | 2 | 09/1998 | 11121736201 | $5.78 | ||||
| 19 | Hex bolt with washer | M6X12-Z1-ZNS | 2 | 09/1998 | 07119900272 | $0.33 | |||
Notes
- +core = plus core charge (possibility of a return of the old part)
