E38 750iL     A5S560Z TRANSMISSION HOUSING

Language:
Sponsored links
 RealOEM.com Home => Select another car => Automatic transmission => Individual transmission parts

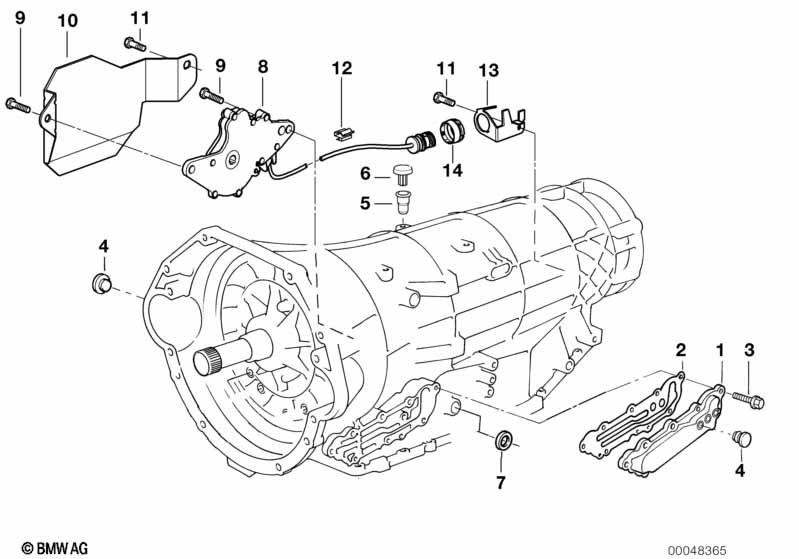

Parts diagram
Sponsored links
No.DescriptionSupplementQty From  Up To Part NumberPriceNotes Photo
01Cover124101421877$98.87
02Gasket Asbestos Free124101421138$7.70
03Hex boltM6X20924101421422$1.87
04Screw Plug With Gasket RingM10X1224117552351$4.60
05Vent pipe124101422141$5.93
only in conjunction with
--Vent cover124101422142$1.95
06Vent cover124101422142$1.95
only in conjunction with
--Vent pipe124101422141$5.93
07Shaft seal10X18X5224147571213$5.20
08POSITION SWITCH109/199824101423763$562.99+core
09Hex boltM6X20224101421422$1.87
10Covering plate124101422153$11.05
11Hex boltM6X15224101422154$2.37
12Cable clamp124101422451$1.87
13Bracket124101421796$7.80
14Connecting sleeve124101423242$1.68

Ads by RealOEM
Eres un experto usando catálogos de partes para BMW? Queremos ofrecerle una carrera con prospección como representante de servicio al cliente trabajando desde casa. Si usted esta interesado, pulsar acá y envié su currículo

Notes

  • +core = plus core charge (possibility of a return of the old part)
