E65 745i     Hot-film air mass meter

Language:
Sponsored links
 RealOEM.com Home => Select another car => Fuel Preparation System => FUEL INJECTION SYSTEM

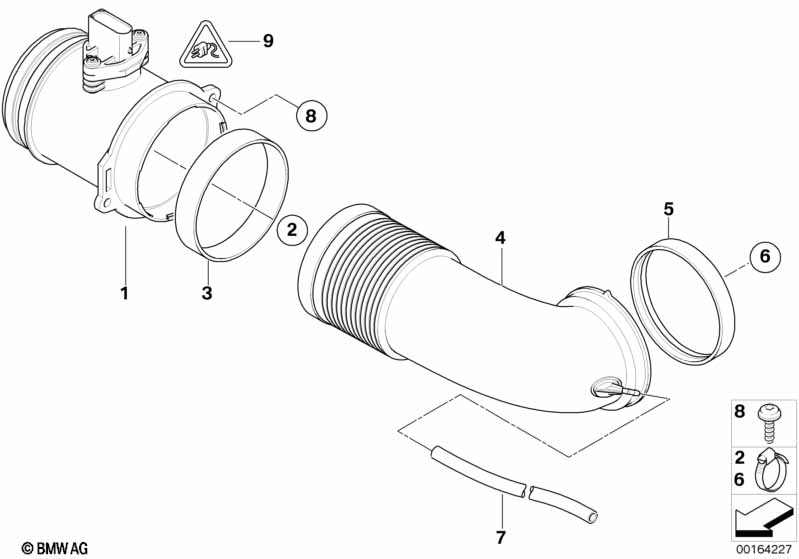

Parts diagram
Sponsored links
No.DescriptionSupplementQty From  Up To Part NumberPriceNotes Photo
01Hot-film air mass meter109/200313627501554$402.32
01Hot-film air mass meter109/200313627566988$402.32
02Hose clampL95-102107129952137$1.52
03Rubber Ring109/200313711736195$6.48
04Rubber boot109/200313717501202$37.87
04Rubber boot109/200313717531799$37.87
05Rubber Ring108/200213711747985$7.89
06Hose clampL89-96107129952135$2.18
07Hose113717577758$5.50
08Screw, thermoplastic plastics60X20209/200311/200613627527810$0.52
08Screw, thermoplastic plastics60X22209/200313627805193$0.53
09Plug housing5 POLIG112521433204$3.52
only in conjunction with
--Socket terminal SLK 2.8 ELA with wire0,2- 0,5MM²512520007170$2.03
--Socket terminal SLK 2.8 ELA with wire0,5- 1,0 MM² SN512520007172$2.03
--Grommet112521707749$3.47

Ads by RealOEM
Eres un experto usando catálogos de partes para BMW? Queremos ofrecerle una carrera con prospección como representante de servicio al cliente trabajando desde casa. Si usted esta interesado, pulsar acá y envié su currículo

Notes

  • Items pictured but not listed are not installed on your vehicle.
  • Items pictured without a number are listed on another diagram.
