 RealOEM.com Home => Select another car => Heater and Air Conditioning => Evaporator / Expansion valve

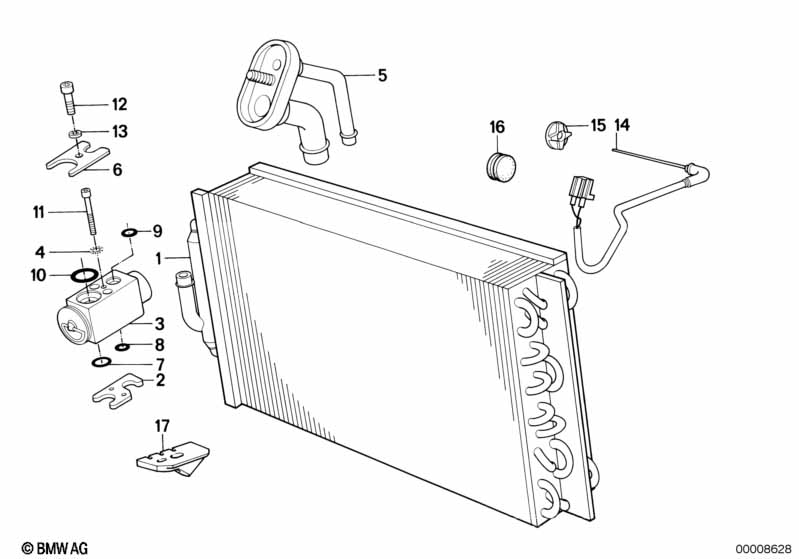

Parts diagram
Sponsored links
No.DescriptionSupplementQty From  Up To Part NumberPriceNotes Photo
01EVAPORATOR (PU)R12/R134A110/199564118391277$599.46
only in conjunction with
--Fillister-head screwM8X50210/199507119901034$1.42
01EVAPORATOR (PU)R12/R134A110/199564118391277$599.46
02Plate110/199564111380572$7.27
only in conjunction with
--Fillister-head screwM8X50210/199507119901034$1.42
02Plate110/199564111380572$7.27
03EXPANSION VALVER12/R134A110/199564118362851$145.03
only in conjunction with
--Fillister-head screwM8X50210/199507119901034$1.42
03EXPANSION VALVER12/R134A110/199564118362851$145.03
05Pipe110/199564111379002$147.93
only in conjunction with
--Fillister-head screwM8X50210/199507119901034$1.42
05Pipe110/199564111379002$147.93
06Plate110/199564111380573$8.10
only in conjunction with
--Fillister-head screwM8X50210/199507119901034$1.42
07Gasket ringD=14MM164508390603$1.49
08Gasket ringD=11.1MM105/199564508390602$1.49
08Gasket ringD=11.1MM164508390602$1.49
09Gasket ringD=7,65MM164508390601$1.93
10Gasket ringD=17,17MM164508390604$2.02
10Gasket ringD=6.8 R12/R134A164508390605$2.51
11Fillister head with washerM5X35264116910423$1.77
12Fillister-head screwM6X16-ZNS107119901438ENDED
12Fillister-head screwM6X16107129905536$0.64
13SPRING WASHER6-ZN107119933231$0.09
14Evaporator temperature sensor164518364458$33.45
15Rubber grommet164511377494$6.63
17Gasket164111382356$16.24

Ads by RealOEM
Eres un experto usando catálogos de partes para BMW? Queremos ofrecerle una carrera con prospección como representante de servicio al cliente trabajando desde casa. Si usted esta interesado, pulsar acá y envié su currículo

Notes

  • ENDED = The part has been discontinued.
