E34 M5 3.8     STORING PARTITION
Language:
Sponsored links
 RealOEM.com Home => Select another car => Vehicle trim => Center armrest / storage trays

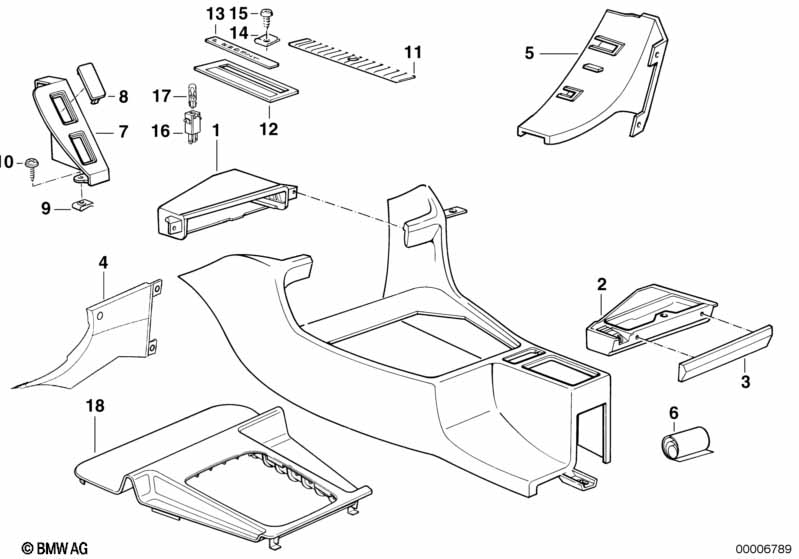

Parts diagram
Sponsored links
No.DescriptionSupplementQty From  Up To Part NumberPriceNotes Photo
01FRAME ASHTRAY FRONT151169061172$47.43
02ASHTRAY FRONT107/199151169061173ENDED
02ASHTRAY FRONTSILBERGRAU151162252571ENDED
03COVERING ASHTRAYSCHWARZ151161949512$16.65
03COVERING ASHTRAY LEATHERSCHWARZ151161957010$66.24
03COVERING ASHTRAY LEATHERCHAMPAGNER151162236370$75.05
03COVERING ASHTRAYKARMESINROT109/198851168117484ENDED
03COVERING ASHTRAYSILBERGRAU109/199051168138081ENDED
03COVERING ASHTRAYULTRAMARIN109/199051168138082ENDED
03COVERING ASHTRAYPERGAMENT109/199051168138083$16.65
03COVERING ASHTRAYBRASIL109/199051168138084ENDED
03COVERING ASHTRAYSILBERGRAU HELL109/199051168138454$16.65
03COVERING ASHTRAY LEATHERSILBERGRAU HELL109/199051168145560$66.24
03COVERING ASHTRAY LEATHERANTHRAZIT`91109/199051168145570
04TRIM PANEL LOWER LEFTSCHWARZ151451978049ENDED
ONLY APPLIES TO LEATHER VERSION
ONLY APPLIES TO ALL LEATHER VERSION
04TRIM PANEL LOWER LEFTCHAMPAGNER151452236003ENDED
04TRIM PANEL LOWER LEFTSCHWARZ151452236359ENDED
04TRIM PANEL LOWER LEFTNATUR151452236361ENDED
04TRIM PANEL LOWER LEFTSILBERGRAU HELL109/199051452234963ENDED
For vehicles with
Leather trim Buffalo
04TRIM PANEL LOWER LEFTANTHRAZIT109/199051452234965ENDED
For vehicles with
Partial leather equipment
and
Wooden trim
04TRIM PANEL LOWER LEFTSCHWARZ151458117791$46.85
04TRIM PANEL LOWER LEFTKARMESINROT151458126211ENDED
04TRIM PANEL LOWER LEFTSILBERGRAU109/199051452252365ENDED
04TRIM PANEL LOWER LEFTSILBERGRAU HELL109/199051458138213$46.85
04TRIM PANEL LOWER LEFTULTRAMARIN109/199051458138215ENDED
04TRIM PANEL LOWER LEFTPERGAMENT109/199051458138217$46.85
04TRIM PANEL LOWER LEFTBRASIL109/199051458138219ENDED
05TRIM PANEL LOWER RIGHTSCHWARZ151451978062$75.85
05TRIM PANEL LOWER RIGHTKARMESINROT109/198951458117832ENDED
05TRIM PANEL LOWER RIGHTSILBERGRAU HELL109/199051458138238ENDED
05TRIM PANEL LOWER RIGHTSILBERGRAU109/199051458138246ENDED
05TRIM PANEL LOWER RIGHTULTRAMARIN109/199051458138438ENDED
05TRIM PANEL LOWER RIGHTPERGAMENT109/199051458138440$75.85
05TRIM PANEL LOWER RIGHTBRASIL109/199051458138442ENDED
For vehicles with
Leather trim Buffalo
05TRIM PANEL LOWER RIGHTANTHRAZIT109/199051452234964ENDED
For vehicles with
Leather trim
05TRIM PANEL LOWER RIGHTCHAMPAGNER151452236008ENDED
05TRIM PANEL LOWER RIGHTSCHWARZ151452236346ENDED
05TRIM PANEL LOWER RIGHTSILBERGRAU HELL109/199051452234962ENDED
06Imitation leatherBRASIL?51928138497ENDED
06FLOOR COVERINGKARMESINROT?09/198851928114536ENDED
06FLOOR COVERINGPERGAMENT?09/199001/199251928124419+core, ENDED
06FLOOR COVERINGPERGAMENT?09/199051928145529ENDED
06FLOOR COVERINGSILBERGRAU?09/199006/199251928124417+core, ENDED
06FLOOR COVERINGSILBERGRAU?09/199051928152793ENDED
06FLOOR COVERINGANTHRAZIT`91?09/199051928124416ENDED
06FLOOR COVERINGULTRAMARIN?09/199051928124418+core, ENDED
07Covering leftSCHWARZ151168181525$8.22
07Covering leftKARMESINROT109/198851168117171ENDED
07Covering leftSILBERGRAU HELL109/199051168138313ENDED
07Covering leftSILBERGRAU109/199051168138315ENDED
07Covering leftULTRAMARIN109/199051168138317ENDED
07Covering leftPERGAMENT109/199051168138319ENDED
08CoverSCHWARZ?51161963979$1.54
08CoverKARMESINROT?09/198851168117170ENDED
08CoverSILBERGRAU HELL?09/199051168141314$2.02
08CoverSILBERGRAU?09/199051168141316
08CoverULTRAMARIN?09/199051168141318
08CoverPERGAMENT?09/199051168141320$2.02
08CoverBRASIL?09/199051168141322ENDED
09Body nutST4,2-2207129925730$0.11
10Fillister head self-tapping screwST4,2X19251431874616$0.39
For vehicles with
Leather trim Buffalo
18DEPOSITING BOX BOTTOM PANELANTHRAZIT109/199051162234920ENDED
For vehicles with
Cloth version
18DEPOSITING BOX BOTTOM PANELANTHRAZIT151162237023$77.94
18DEPOSITING BOX BOTTOM PANELSILBERGRAU109/199051162234916ENDED
18DEPOSITING BOX BOTTOM PANELSILBERGRAU HELL109/199051162235319ENDED
For vehicles with
Leather trim
18DEPOSITING BOX BOTTOM PANELSCHWARZ151162237026ENDED
18DEPOSITING BOX BOTTOM PANELCHAMPAGNER151162237029ENDED
18DEPOSITING BOX BOTTOM PANELSILBERGRAU HELL109/199051162234918ENDED

Ads by RealOEM
Eres un experto usando catálogos de partes para BMW? Queremos ofrecerle una carrera con prospección como representante de servicio al cliente trabajando desde casa. Si usted esta interesado, pulsar acá y envié su currículo

Notes

  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = The part has been discontinued.
