 RealOEM.com Home => Select another car => Vehicle trim => Center armrest / storage trays

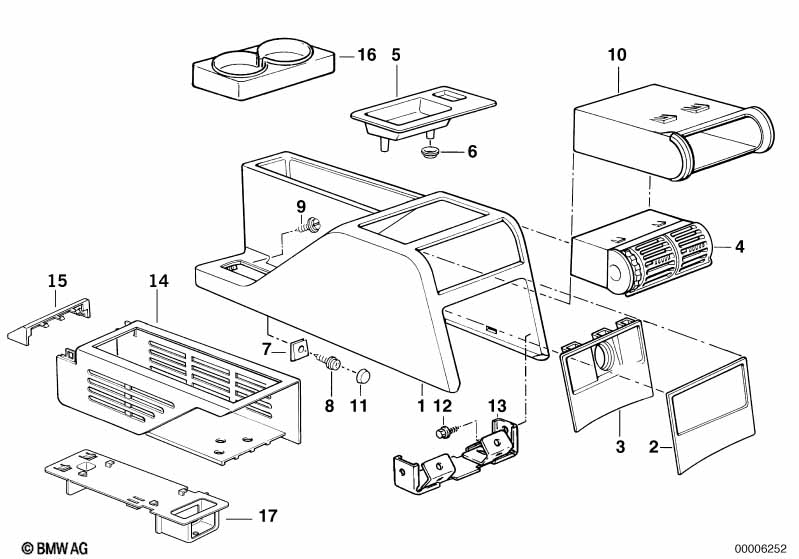

Parts diagram
Sponsored links
No.DescriptionSupplementQty From  Up To Part NumberPriceNotes Photo
01ConsoleCARDINALROT109/198951168181930ENDED
01ConsoleINDIGO109/199051168181942ENDED
01ConsoleHAVANNA109/199051168181943ENDED
01ConsoleNATUR109/199051168181944ENDED
01ConsoleSCHWARZ151168181940$210.29
01ConsoleKARMESINROT109/198951168117111ENDED
01ConsoleSILBERGRAU109/199051168138113ENDED
01ConsoleULTRAMARIN109/199051168138114ENDED
01ConsolePERGAMENT109/199051168138115ENDED
01ConsoleBRASIL109/199051168138116ENDED
01ConsoleSILBERGRAU HELL109/199051168138461ENDED
For vehicles with
Leather trim
and
Wooden trim
01ConsoleSCHWARZ151168107501ENDED
01ConsoleKARMESINROT151168107505ENDED
01ConsoleSILBERGRAU HELL151168138133ENDED
01ConsoleULTRAMARIN151168138134ENDED
01ConsolePERGAMENT151168138135ENDED
01ConsoleBRASIL151168138136ENDED
01ConsoleSILBERGRAU109/199151168148993ENDED
02Cover109/199151161946193$5.70
03Cover151161946190$5.70
04FRESH AIR GRILLE REAR ROOM ELECTR.164221375561$284.45
For vehicles with
Roller sun shield
05Switch coverCARDINALROT109/198951168102616ENDED
05Switch coverSILBER109/199051161963698ENDED
05Switch coverINDIGO109/199051161963699ENDED
05Switch coverHAVANNA109/199051161963700ENDED
05Switch coverNATUR109/199051161963702ENDED
05Switch coverSCHWARZ151161963697ENDED
05Switch coverKARMESINROT109/198951168117155$63.33
05Switch coverSILBERGRAU HELL109/199051168138420ENDED
05Switch coverSILBERGRAU109/199051168138421ENDED
05Switch coverULTRAMARIN109/199051168138422ENDED
05Switch coverPERGAMENT109/199051168138423ENDED
05Switch coverBRASIL109/199051168138424ENDED
06Circlip272161858017$0.10
07Body nutST4,2-4107129925708ENDED
07SET BODY NUT 25ST4,2-4107509063123ENDED
07Body nutST4,2-2ZNS107129901645$0.11
08Sheet metal screwST4,2X13151161948970$0.33
09Fillister head self-tapping screwST4,2X13-Z2107119907939$0.11
10STORING PARTITION REAR151161946245ENDED
11CapSILBER109/199051161949794ENDED
11CapINDIGO109/199051161949795ENDED
11CapHAVANNA109/199051161949797$0.44
11CapNATUR109/199051161949798$0.32
11CapSCHWARZ151161949793$0.42
11CapKARMESINROT109/198951168117088$0.58
11CapSILBERGRAU109/199051168140431$0.39
11CapSILBERGRAU HELL109/199051168140432$0.39
11CapULTRAMARIN109/199051168140433$0.39
11CapPERGAMENT109/199051168140434$0.39
11CapPERGAMENT HELL109/199051168140435$0.39
11CapBRASIL109/199051168140436
11Cap109/199051168140492$0.32
12Hex head screwST4,8X16-C-Z2211/199807119916946ENDED
12Hex head screwST4,8X16-ZNS211/199807119901294ENDED
12Hex head screwST4,8X16-ZNS3211/199807119901299$0.25
12Sheet metal screw ST4,8X16-C-Z2-ZNFE207119901311$0.25
13Support151162237553ENDED
ONLY APPLIES TO D-SYSTEM
17EJECT-BOX BRACKETMOTOROLA D-NETZ151168174085$6.05

Ads by RealOEM
Eres un experto usando catálogos de partes para BMW? Queremos ofrecerle una carrera con prospección como representante de servicio al cliente trabajando desde casa. Si usted esta interesado, pulsar acá y envié su currículo

Notes

  • ENDED = The part has been discontinued.
