E34 525i     FUEL SUPPLY/SINGLE FILTER

Language:
Sponsored links
 RealOEM.com Home => Select another car => Fuel Supply => Fuel feed

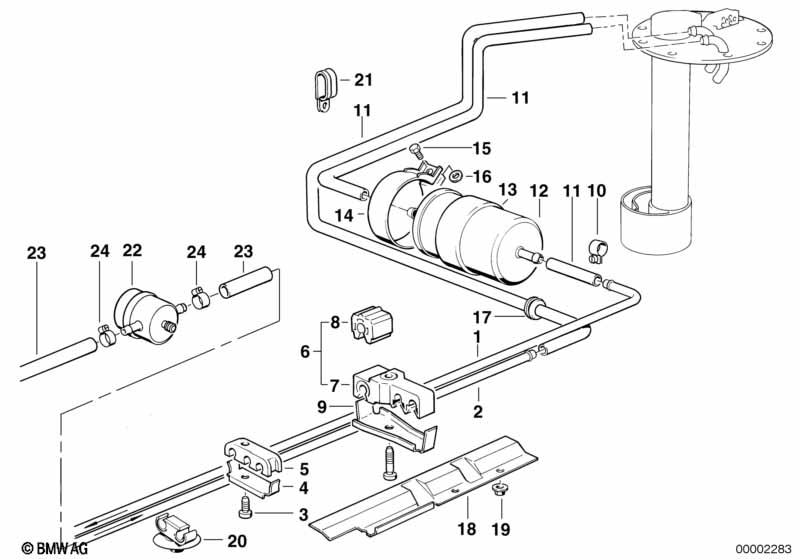

Parts diagram
Sponsored links
No.DescriptionSupplementQty From  Up To Part NumberPriceNotes Photo
01Feed line116121179604$30.47
02Return pipe116121179609$40.50
03SELF TAPPING SCREW?34321119239$0.27
04Bracket816121155064$1.62
05Tubing support916121118686$2.68
07Holder316121179033$2.17
08RUBBER BUFFER316121178832$2.08
09Holder316121179086$2.17
10Hose clampL12-15207129952104$1.18
11Fuel hose8X13MM?16121180409$20.43
12Fuel filterD=80MM113321270038ENDED
13DAMPER RINGD=80MM116121178643$3.68
14BRACKET FUEL STRAINERD=80MM116121178632$10.70
15Hex bolt with washerM6X20-Z2107119913580ENDED
15Hex boltM6X20-U2-8.8107119903995$0.53
16CirclipM6154318246804$5.46
17DAMPER RING18X23X9112521276010$1.77
18STONE-CHIP GUARD116121181348$10.62
19Plastic nutM6316131176747$0.53

Ads by RealOEM
Eres un experto usando catálogos de partes para BMW? Queremos ofrecerle una carrera con prospección como representante de servicio al cliente trabajando desde casa. Si usted esta interesado, pulsar acá y envié su currículo

Notes

  • ENDED = The part has been discontinued.
