E34 525i     DOOR WINDOW LIFTING MECHANISM FRONT

Language:
Sponsored links
 RealOEM.com Home => Select another car => Vehicle trim => Door, front

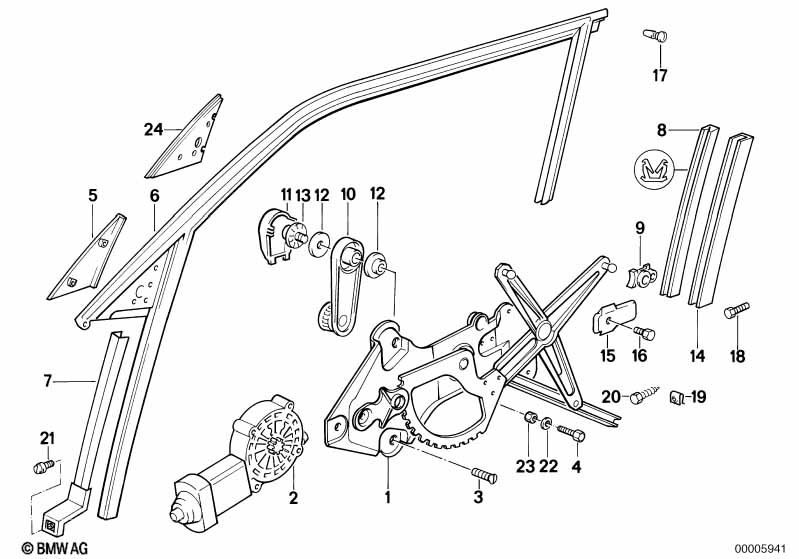

Parts diagram
Sponsored links
No.DescriptionSupplementQty From  Up To Part NumberPriceNotes Photo
For vehicles with
Electr. window lifter
01ELECTR.WINDOW LIFTER FRONT LEFT151321944069$120.82
01ELECTR.WINDOW LIFTER FRONT RIGHT151321944070$120.82
ONLY APPLIES TO CO-DRIVERS SIDE
02Electr.drive167628359373$147.05
ONLY APPLIES TO DRIVER'S SIDE
02Electr.drive167628359374$147.05
03COUNTERSUNK HEAD SCREW651371952879$0.80
04Hex boltM6X10?07119913426$0.25
05COVERING INNER LEFTSCHWARZ109/199051328138885$7.80
05COVERING INNER RIGHTSCHWARZ109/199051328138886ENDED
06FRONT LEFT WINDOW GUIDE151328176585$84.27
06FRONT RIGHT WINDOW GUIDE151328176586$84.27
07GUIDE RAIL FRONT LEFT151321944525$21.01
07GUIDE RAIL FRONT RIGHT151321944526$21.01
08WINDOW GUIDE438MM251341938062$6.70
09SLIDING PIECE451321938884$3.02
14GUIDE RAIL FRONT LEFT151321944041$18.92
14GUIDE RAIL FRONT RIGHT151321944042$18.92
15Stopper251331908448$9.63
16Hex boltM6X8207119913420$0.13
17Clamp251221856946$0.44
18Fillister-head screw251328181425$0.59
19NUT HOLDERM6-ZNS261211366389ENDED
19Clip nutM6-ZNS3251127070202$1.00
20Hex bolt251341950474$0.59
21Screw251221944316$0.66
22Washer6,4?07119931044$0.58
23Hex nutM6?08/199623112322368$0.38
23Hex nutM6-8-ZNS?07119922832ENDED
23Hex nutM6?07119905543$0.38
24INNER LEFT GASKET151328107575$0.57
24INNER RIGHT GASKET151328107576$0.57
24EXTERIOR LEFT GASKET151328181905$2.73
24EXTERIOR RIGHT GASKET151328181906$2.73

Ads by RealOEM
Eres un experto usando catálogos de partes para BMW? Queremos ofrecerle una carrera con prospección como representante de servicio al cliente trabajando desde casa. Si usted esta interesado, pulsar acá y envié su currículo

Notes

  • ENDED = The part has been discontinued.
