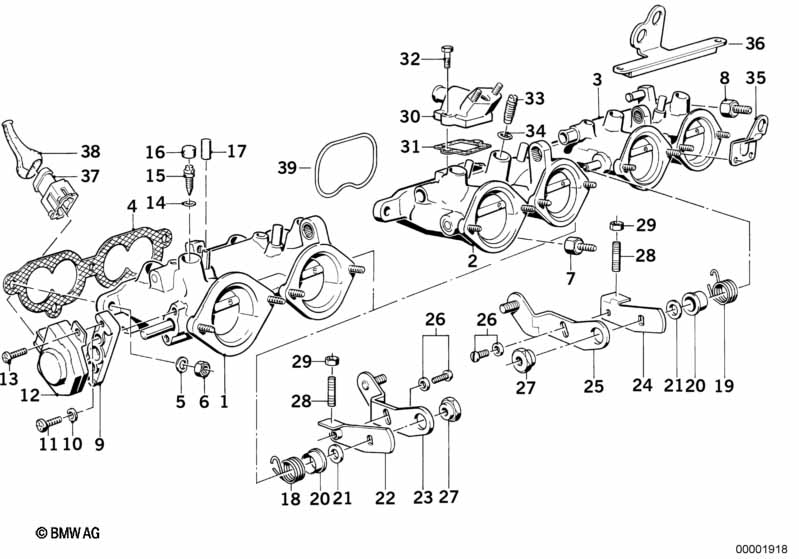

5' E34 M5 3.6 Throttle Housing Assy

Throttle Housing Assy
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Throttle Housing Assy ZYL.1+2 1 13541312401 $1288.98 ENDED
02 Throttle Housing Assy ZYL.3+4 1 13541312404 $1288.98 ENDED
only in conjunction with
-- Pipe D=14MM 1 13541312807 $9.37 ENDED
-- Pipe D= 8MM 1 13541312808 $4.30 ENDED
03 Throttle Housing Assy ZYL.5+6 1 13541312407 $1190.28
04 Gasket Asbestos Free 3 13541315939 $6.23
05 Wave washer B8 9 04/1993 07119932095 $0.09 ENDED
05 Wave washer 9 07119904115 $0.09
06 Hex nut M6-8-ZNNIV SI 4 07119905543 $0.38
06 Hex nut M8-ZNS 8 07119922856 $0.56 ENDED
06 Hex nut M8-8-ZNS3 8 04/1993 07119904032 $0.16
06 Hex nut M8-8-ZNNIV SI 8 07119905515 $0.16
07 Extension 2 13651353339 $3.28
08 Extension 1 13541306981 $5.35
09 Flange 1 13541260557 ENDED
10 Wave washer B5 2 08/1990 07119932047 $0.09 ENDED
10 Wave washer B5 2 07119932098 $0.38
11 Fillister head screw M5X12-ZN 2 07119907627 $0.43
12 Throttle valve switch 1 13621273277 $117.43
RECTANGULAR PLUG
12 Throttle valve switch EH 1 13541710560 $172.22
CABLE SOCKET ROUND MALE
13 Fillister-head screw M4 X 9,2 1 13541705562 $0.93
14 O-ring 9,25X1,78/FPM 3 17211742635 $0.80
15 Throttle screw 3 13541402567 $16.31
16 Cap GELB 3 13111265509 $3.02
17 Cap D=3,5MM 3 11611437560 $3.39
18 Retainer spring ZYL.1+2/3+4 2 13541309219 $3.53 ENDED
19 Retainer spring ZYL.5+6 1 13541309220 $2.82
20 Bush DROSSELKLAPPE 6 13541308986 $4.78
21 Shim 18X8X0,2 X 13541312414 $1.77 ENDED
22 Lever 2 13541308979 $3.68
23 Lever 2 13541308980 $22.96
24 Lever 1 13541308978 $3.68 ENDED
25 Lever 1 13541308984 $11.30
26 Fillister head screw M5X8 3 07119907623 $0.25
27 Nut 3 13541308977 $5.68
28 Grub screw M6X20 3 07119905431 $0.96
29 Hex nut M6-8-ZNNIV SI 3 07119905543 $0.38
30 Connection flange 1 13541306771 $295.87 ENDED
31 Gasket Asbestos Free 1 13541312459 $1.86
32 Hex bolt M6X22 2 07119913475 $0.25 ENDED
32 Hex bolt M6X22-8.8-ZNS3 2 07119904505 $0.38
32 Stud bolt M6X25-ZN 2 07129908100 $0.20
33 Throttle screw 1 13541308581 $7.88
34 O-ring 1 11631271346 $1.12
35 Bracket for accelerator bowden cable 1 13541311589 $6.93
37 Plug housing 3 POL. 1 06/1986 12521706068 $8.52 ENDED
37 Plug housing 1 12521706096 $7.59
38 Protection cap L=17,5MM 1 61131358603 $5.32
Notes
  • ENDED = the part has been discontinued (no longer available).
