E34 525i     CATALYTIC CONVERTER/FRONT SILENCER

Language:
Sponsored links
 RealOEM.com Home => Select another car => Exhaust system => CATALYTIC CONVERTER/FRONT SILENCER

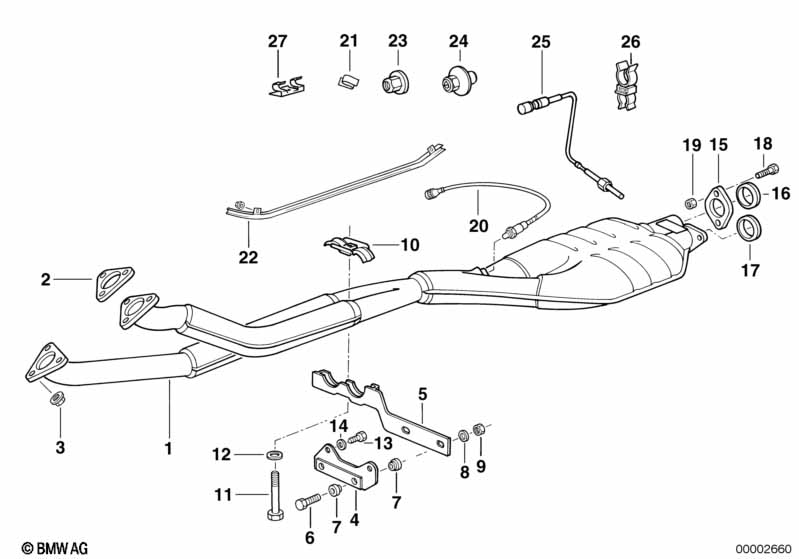

Parts diagram
Sponsored links
No.DescriptionSupplementQty From  Up To Part NumberPriceNotes Photo
01Rmfd-exhaust pipe catalyst118301728616$1,807.65
02Gasket Asbestos Free218301716888$11.75
03Hex nutM10618301737774$1.65
04Bracket118212243263$5.85
05EXHAUST SUPPORT118301728642$15.46
07Rubber Mounting217111113699$5.18
08WAVE WASHERB6407119932099$0.38
08WAVE WASHERB6-ZNS3407119904496ENDED
08WasherA8,4233311108205$0.16
09Hex nutM8-ZNS407119922856ENDED
09Hex nutM8-8-ZNS3407119904032$0.16
10Pipe clamp118211176717$11.57
11Hex boltM8X65107119912535$0.82
12WasherA8,4133311108205$0.16
13Hex boltM8X18207119913627$0.24
14WasherA8,4233311108205$0.16
15FLANGE118111712070$15.61
16GASKET RING ASBESTO-FREE50MM118111723540$8.37
16Gasket ring50MM118111723532
17Gasket ring47MM118111175311$8.37
18Hex boltM8X55407119912524ENDED
18Hex boltM8X55-8.8407119902957$5.27
19Hex nut wiht flangeM8411621711954ENDED
20OXYGEN SENSORL=1450MM111781735710$215.65See SI 110792523
20OXYGEN SENSORL=1450MM111781735680
20OXYGEN SENSORL=1450MM111781735680
21Cable clamp161131389400ENDED
22Guide111781738601$26.54
23Plastic nutM6116131176747$0.53
24Push-button117111709419$0.33

Ads by RealOEM
Eres un experto usando catálogos de partes para BMW? Queremos ofrecerle una carrera con prospección como representante de servicio al cliente trabajando desde casa. Si usted esta interesado, pulsar acá y envié su currículo

Notes

  • SI, TÜV, SDB = Service Information (refer to TIS).
  • ENDED = The part has been discontinued.
