E60 525i     Intake muffler/Filter cartridge/HFM

Language:
Sponsored links
 RealOEM.com Home => Select another car => Fuel Preparation System => Intake muffler

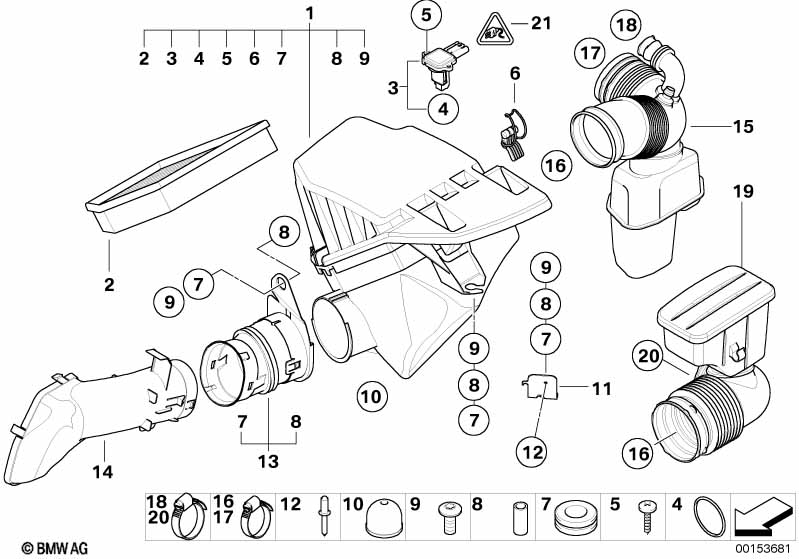

Parts diagram
Sponsored links
No.DescriptionSupplementQty From  Up To Part NumberPriceNotes Photo
01Intake muffler113717521030$525.31
02Air filter element113717521033$31.60
03Hot-film air mass meter113627520519$306.24
04O-ring113627532318$3.11
05Torx screw5X18213627531817$0.60
06Tensioner313717525713$1.41
07Rubber grommet313711702508$3.34
08Sleeve313717525711$3.95
09Fillister head screw207147072901$0.53
10RUBBER BUFFER103/200413711289624$3.50
10RUBBER BUFFER113717539903$6.32
11Bracket. intake silencer113717521015$7.68
12Blind rivet4,8207129948780$0.38
13Intake duct113717521016$34.20
14Intake duct113717521011$34.20
15Rubber boot113717521035$41.95
16Hose clampL83-90107129952133$1.78
17Hose clampL77-84107129952131$1.78
18Hose clampL28-33107129952113$0.96
21Socket housing112527516864$2.53
only in conjunction with
--Rubber grommet0.2MM²561138366247$0.18
only applies to
--Terminal socket for MLK 1,20,25-0,5 MM²/AG512527532371$0.50
only applies to
--Rubber grommet112527535589$0.88
only applies to
--Grommet112527576295
only applies to
--Hot-film air mass meter?13627520519$306.24

Ads by RealOEM
Eres un experto usando catálogos de partes para BMW? Queremos ofrecerle una carrera con prospección como representante de servicio al cliente trabajando desde casa. Si usted esta interesado, pulsar acá y envié su currículo

Notes

  • Items pictured but not listed are not installed on your vehicle.
  • Items pictured without a number are listed on another diagram.
