E83 X3 3.0i     EMISSION CONTROL-AIR PUMP

Language:
Sponsored links
 RealOEM.com Home => Select another car => Engine => Exhaust manifold

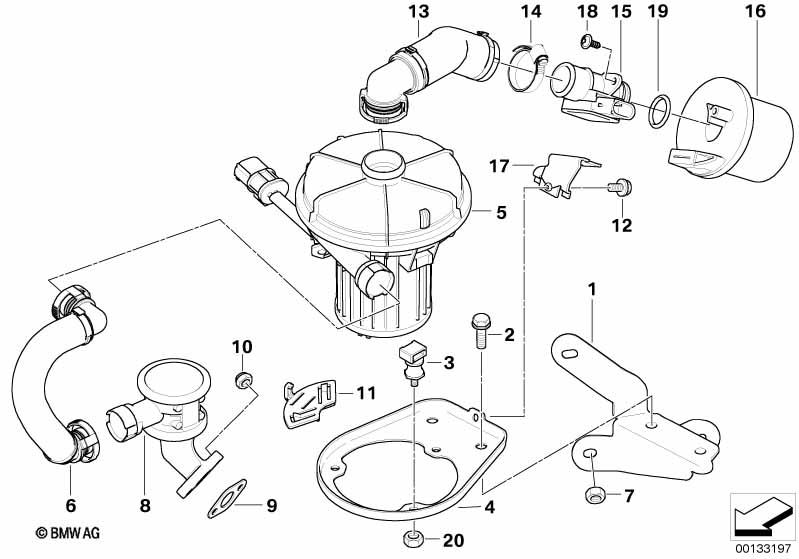

Parts diagram
Sponsored links
No.DescriptionSupplementQty From  Up To Part NumberPriceNotes Photo
  iFor vehicles with
Automatic transmission

S205A=Yes
01SECONDARY AIR PUMP BRACKET111723401026$22.73
02Hex bolt with washerM8X14 ZNNIV SI207119905527$0.47
04Bracket111723401027$15.32
05AIR PUMP111727571589$399.52
06PRESSURE HOSE ASSY111723420627$34.29+core
07Hex nutM6-8-ZNS3607119902751ENDED
07SELF-LOCKING HEX NUTM6-8-ZNNIV SI607119905949$0.24
08Valve111727553066$114.19
09Gasket Steel111727514860$1.19
10SELF-LOCKING HEX NUT211721742644$0.50
11Adapter plate111727514954$8.05
12Countersunk screw2,8X1,6 ZNFE SW111727525290$0.22
13Suction pipe111723420553$34.29
14ClampL=34,9-38,1133341138055$3.37
15Mass air flow sensor111721438814$100.20
16Secondary air filter111727534722$15.81
17SUPPORT AIR CLEANER111723402047$7.27
18Fillister head screwTS 5X16151417067920$0.39
19O-ring25,12X1,78107119904649$1.15
20NutM6-8-ZNS307/200764126928325ENDED
20Hex nutM6-8-ZNS3307119902751ENDED
20SELF-LOCKING HEX NUTM6-8-ZNNIV SI307119905949$0.24

Ads by RealOEM
Eres un experto usando catálogos de partes para BMW? Queremos ofrecerle una carrera con prospección como representante de servicio al cliente trabajando desde casa. Si usted esta interesado, pulsar acá y envié su currículo

Notes

  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = The part has been discontinued.
