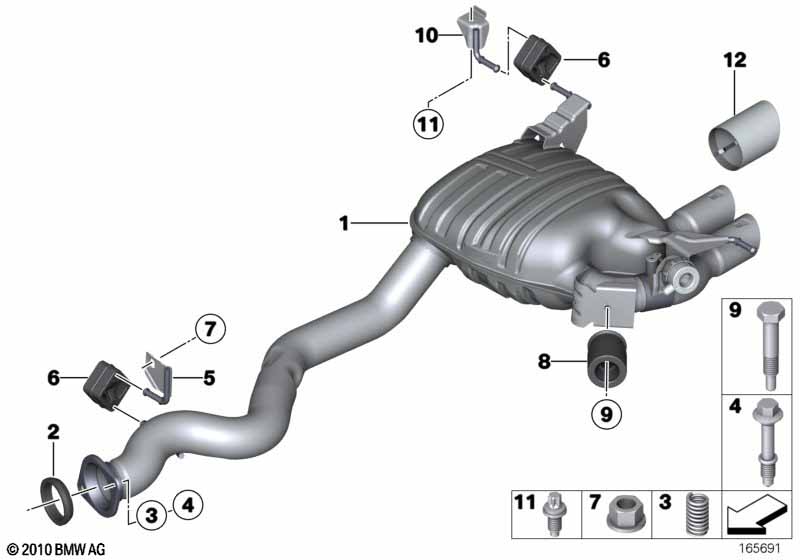

1' E82 135i Exhaust system, rear

Exhaust system, rear
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Rear muffler with exhaust flap 1 18307599744
02 Gasket ring 1 18117553130 $26.38
Required for repair
-- Hex screw with collar M10X67 2 18307561670 $3.20
-- Spiral spring 2 18307790610 $10.62
03 Spiral spring 2 18307790610 $10.62
04 Hex screw with collar M10X67 2 18307561670 $3.20
05 Holder 1 18207634725
06 Rubber Mounting 3 18207578238 $16.30
07 Hex nut M12X1,5ZNNIV SI 1 07129904866 $1.85
08 Vibration absorber 32 HZ 1 18303413587 $54.00
09 Collar screw M8X70 1 18407540023 $4.07
10 Holder 1 18207581120 $18.80
11 Torx-bolt with washer ASA M8X25 1 51217062145 $1.17
12 Tailpipe tip, black chrome 2 18307559999 $48.00
