1' E82 M Coupé Exhaust system, rear

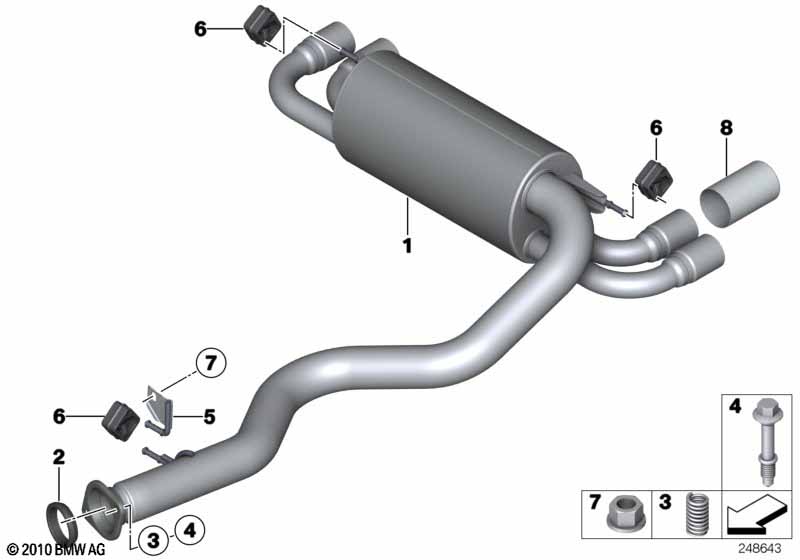

Exhaust system, rear
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Rear muffler 1 18107845402
For vehicles with
National version China

L8AAA=Yes
01 Rear muffler 1 18307647119
02 Gasket ring 1 18117553130 $26.38
Required for repair
-- Hex screw with collar M10X67 2 18307561670 $3.20
-- Spiral spring 2 18307790610 $10.62
03 Spiral spring 2 18307790610 $10.62
04 Hex screw with collar M10X67 2 18307561670 $3.20
05 Holder 1 18207549977 $22.83
06 Rubber Mounting 3 18207798560
07 Hex nut M12X1,5ZNNIV SI 1 07129904866 $1.85
08 Tailpipe tip, chrome 4 18107845408
