 RealOEM.com Home => Select another car => Brakes => Rear brake pad wear sensor

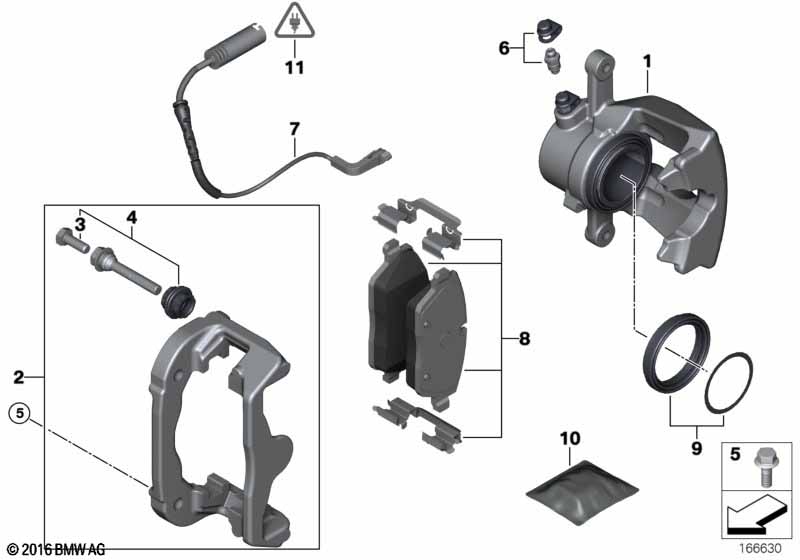

Parts diagram
Sponsored links
No.DescriptionSupplementQty From  Up To Part NumberPriceNotes Photo
  iNot suitable for "Performance Parts"
01Caliper housing left134216776377
01CALIPER HOUSING RIGHT134216776378
02BRAKE CARRIER234216776380
03Hex boltM8234116768190$3.12
04Repair kit bellows234116768189$19.48
05Collar screw, micro-encapsulatedM10X26,5434203414763$1.32
06Repair kit ventilation valve234116768188$6.52
07Brake pad wear sensor103/201034356789445$25.20
07Brake pad wear sensor103/201034356792564
08Repair kit, brake pads asbestos-free134216788183
In addition, the following parts are
essential:
- brake pad sensor
- brake pad paste
refer to Repair Manual!
09REPAIR SET BRAKE CALIPER234216769278
10Brake pad paste3G283192158851

Ads by RealOEM
Eres un experto usando catálogos de partes para BMW? Queremos ofrecerle una carrera con prospección como representante de servicio al cliente trabajando desde casa. Si usted esta interesado, pulsar acá y envié su currículo

Notes

  • Items pictured but not listed are not installed on your vehicle.
  • Items pictured without a number are listed on another diagram.
