E90 325i     Seat, rear, seat frame, load-through

Language:
Sponsored links
 RealOEM.com Home => Select another car => Seats => Seat rear basic version

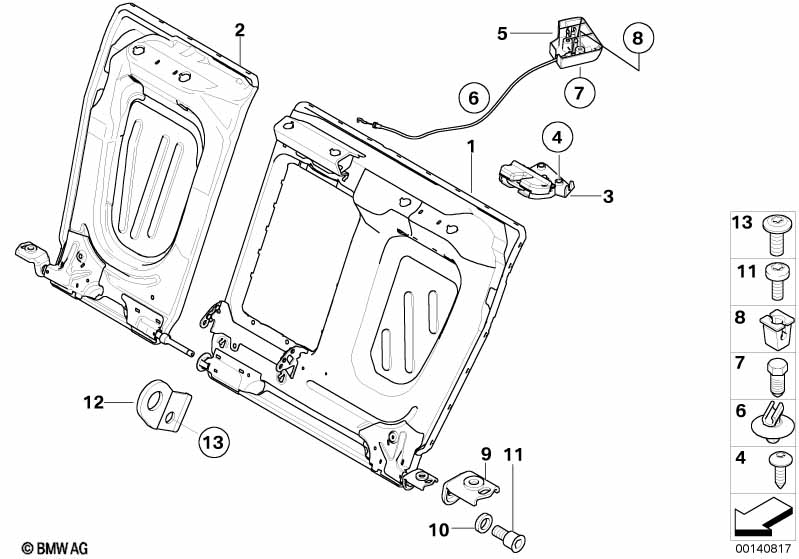

Parts diagram
Sponsored links
No.DescriptionSupplementQty From  Up To Part NumberPriceNotes Photo
01Frame, backrest left152207141907$341.01
02Frame, backrest right152207146973$227.34
03Lock left152207112863$35.49+core
03Lock right152207112864$35.49+core
04Hex bolt with washerM8X20-ZNS3407147165618$0.73
05Actuation unit left152207151369$32.96
05Actuation unit right152207151370$32.96
06Cable holder472118177700$0.52
07Hex head screwST4,8X16-ZNS3407119901299$0.25
08Expanding nutST 4.8463121374075$0.23
09Support252207118701$7.87
10Bush252207134124$7.75
11Fillister-head screwM10X22207147116970$1.80
12Supporting bracket, center152207161259$6.30
13Fillister head screw with collarM10X15207147161279$0.80

Ads by RealOEM
Eres un experto usando catálogos de partes para BMW? Queremos ofrecerle una carrera con prospección como representante de servicio al cliente trabajando desde casa. Si usted esta interesado, pulsar acá y envié su currículo

Notes

  • +core = plus core charge (possibility of a return of the old part)
