 RealOEM.com Home => Select another car => Brakes => Front brake pad wear sensor

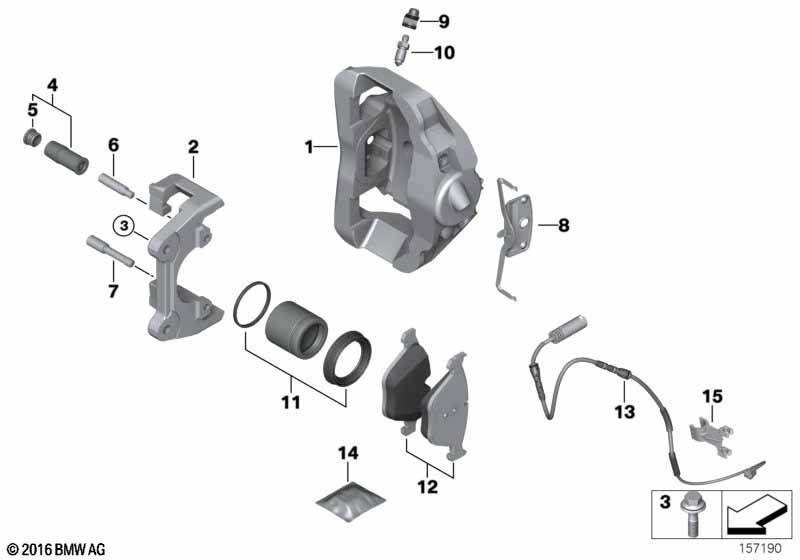

Parts diagram
Sponsored links
No.DescriptionSupplementQty From  Up To Part NumberPriceNotes Photo
  iNot suitable for "Performance Parts"
01Caliper housing left134116773201$308.45
01CALIPER HOUSING RIGHT134116773202$308.45
02BRAKE CARRIER234116773203$190.98
03Hex boltM12X1,5X43 ZNS3434116772117$1.88
04REPAIR KIT GUIDE BUSH234116758707$25.37
05PROTECTIVE PLUG434111154979$1.80
06GUIDING BOLT234111157041$20.02
07GUIDING BOLT234116757036$21.50
08Clip234116757253$17.25
09DUST CAP234111163435$4.20
10Ventilation valveM10X1234116768018$6.60
11REPAIR SET BRAKE CALIPER234116769090$25.42
12Repair kit, brake pads asbestos-free109/200934116794917
The following additional parts are
also essential:
- brake pad sensor
- brake pad paste
The following recommendation applies
to vehicles more than 48 months old:
- Replace retaining spring
refer to Repair Manual!
12Repair kit, brake pads asbestos-free109/200905/201034116790760ENDED
The following additional parts are
also essential:
- brake pad sensor
- brake pad paste
The following recommendation applies
to vehicles more than 48 months old:
- Replace retaining spring
refer to Repair Manual!
12Repair kit, brake pads asbestos-free109/200934116794920
The following additional parts are
also essential:
- brake pad sensor
- brake pad paste
The following recommendation applies
to vehicles more than 48 months old:
- Replace retaining spring
refer to Repair Manual!
13Brake pad wear sensor103/201034356789440$24.00
only in conjunction with
--Clip for brake pad wear sensor103/201034356779356$0.77
13Brake pad wear sensor103/201034356792560
only in conjunction with
--Clip for brake pad wear sensor103/201034356779356$0.77
14Brake pad paste3G283192158851
15Clip for brake pad wear sensor134356779356$0.77

Ads by RealOEM
Eres un experto usando catálogos de partes para BMW? Queremos ofrecerle una carrera con prospección como representante de servicio al cliente trabajando desde casa. Si usted esta interesado, pulsar acá y envié su currículo

Notes

  • ENDED = The part has been discontinued.
