E90 335d     High pressure accumulator/injector/line

Language:
Sponsored links
 RealOEM.com Home => Select another car => Fuel Preparation System => FUEL INJECTION SYSTEM

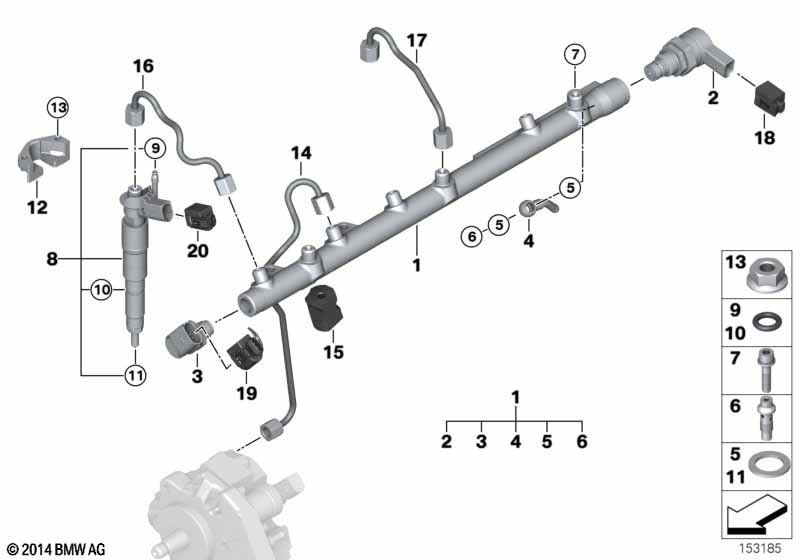

Parts diagram
Sponsored links
No.DescriptionSupplementQty From  Up To Part NumberPriceNotes Photo
01PRESSURE ACCUMULATOR113537805727$590.52
02PRESSURE REGULATING VALVE113537805734$262.57
03Pressure sensor113537787167$267.53
04Connector113537805736$27.37
05Gasket ring213512248189$1.84
06HOLLOW BOLT113537807486$16.35
07Fillister-head screwM8X25-8.8-ZNS3307119904102$0.80
08Rmfd Injector613537808094$482.82
09O-ring613537794553$4.38
10O-ring22X2613537787236$3.75
11Gasket ring613532247156$3.63
12FLANGE613537792722$7.87
13Flange nutM61213537801713$0.23
14PRESSURE HOSE ASSY113537792947$28.62
15Rubber Mounting113532248576$3.40
16PRESSURE HOSE ASSY313537792717$22.60
17PRESSURE HOSE ASSY313537792718$22.60
18Socket housing 2 pins112527508153$2.53
only in conjunction with
--Socket terminal SLK 2.8 ELA with wire0,2- 0,5MM²212520007170$2.03
--Socket terminal SLK 2.8 ELA0,22-0,5MM² SN212521427608$0.47
--Single conductor seal0,25-1,0MM²212521748973$0.13
--Covering cap112517789973
19Plug housing112527508154
only in conjunction with
--Socket contact SLK 2,81,0-2,5MM²/SN312521433217$0.50
--Single conductor seal1,0-2,5MM²312521748974$0.20

Ads by RealOEM
Eres un experto usando catálogos de partes para BMW? Queremos ofrecerle una carrera con prospección como representante de servicio al cliente trabajando desde casa. Si usted esta interesado, pulsar acá y envié su currículo

Notes

  • Items pictured but not listed are not installed on your vehicle.
  • Items pictured without a number are listed on another diagram.
