E92 330i     Intake muffler/Filter cartridge/HFM

Language:
Sponsored links
 RealOEM.com Home => Select another car => Fuel Preparation System => Intake muffler

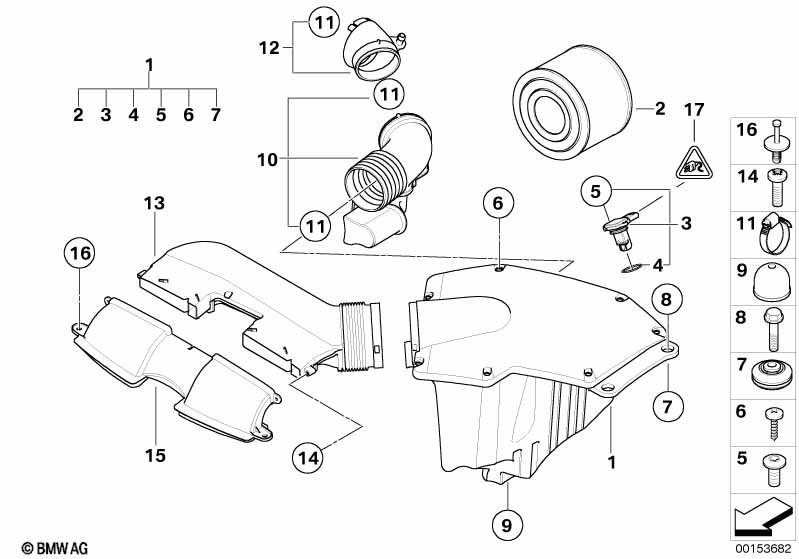

Parts diagram
Sponsored links
No.DescriptionSupplementQty From  Up To Part NumberPriceNotes Photo
01Intake muffler111/200813717555287
01Intake muffler113717579119
02Air filter element113717536006$31.24
03Hot-film air mass meter110/200813627551638$306.24
03Hot-film air mass meter113627585680
04O-ring113627532318$3.11
05Torx screw5X18213627531817$0.60
06Fillister head screw713717545438$1.54
07Decoupling element213717539911$5.73
08Hex bolt with washerM6X25-U1-ZNS3207119903851ENDED
09RUBBER BUFFER113717539903$6.32
10Rubber boot113717560300
11Hose clamp80-100X9307119905469$1.82
12Connector113717536002$11.38
13Suction hood113717541737$56.91
14Fillister head screw207147549513$0.29
15Suction hood, front113717541738$56.91
16Expanding rivet251471919209$0.45
17Socket housing112527516864$2.53
only in conjunction with
--Rubber grommet0.2MM²561138366247$0.18
only applies to
--Terminal socket for MLK 1,20,25-0,5 MM²/AG512527532371$0.50
only applies to
--Rubber grommet112527535589$0.88
only applies to
--Hot-film air mass meter?13627520519$306.24
--Hot-film air mass meter?13627551638$306.24

Ads by RealOEM
Eres un experto usando catálogos de partes para BMW? Queremos ofrecerle una carrera con prospección como representante de servicio al cliente trabajando desde casa. Si usted esta interesado, pulsar acá y envié su currículo

Notes

  • ENDED = The part has been discontinued.
